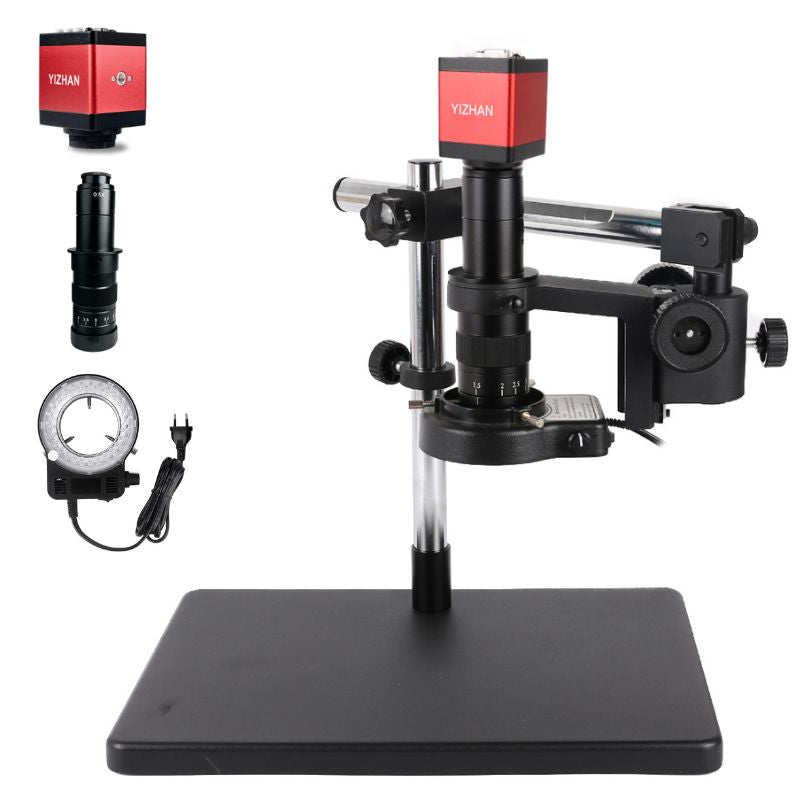

DW180X-XVH2003 Digital Microscope Kit

180X HDMI/VGA Industrial Microscope with Articulating Metal Stand & LED Ring Light

Product Overview

The DW180X-XVH2003 Digital Microscope Kit is a complete industrial inspection system designed for PCB repair, electronic soldering, precision assembly, quality control, and laboratory applications. The complete package includes a 180X continuous zoom optical lens, XVH2003 HDMI/VGA digital microscope camera, heavy-duty articulating metal stand, large stable base, 56-LED adjustable ring light, and all required accessories for immediate operation.

With a generous 100–150 mm working distance, operators have ample space for soldering irons, tweezers, hot air tools, and measurement probes while maintaining sharp, high-definition images. The durable 180° articulating stand allows flexible positioning from multiple angles, making long inspection sessions more comfortable and efficient.

Key Features

Complete Ready-to-Use Microscope System

Everything needed for professional inspection is included:

• 180X optical zoom microscope lens
• XVH2003 HDMI/VGA digital camera
• Heavy-duty articulating metal stand
• Large steel base
• 56-LED adjustable ring light
• Power supply and necessary accessories

Simply assemble the kit and begin inspection immediately.

180X Optical Magnification

The precision optical lens provides:

• Up to 180X on-screen magnification
• High-resolution optical glass
• Excellent edge-to-edge clarity
• Minimal distortion
• Smooth manual focus adjustment

Comfortable 100–150 mm Working Distance

The long working distance creates sufficient space beneath the lens for practical repair work.

Benefits include:

• Easier soldering
• Better tool access
• Reduced accidental contact
• Comfortable hand positioning
• Improved inspection efficiency

Perfect for electronics repair professionals.

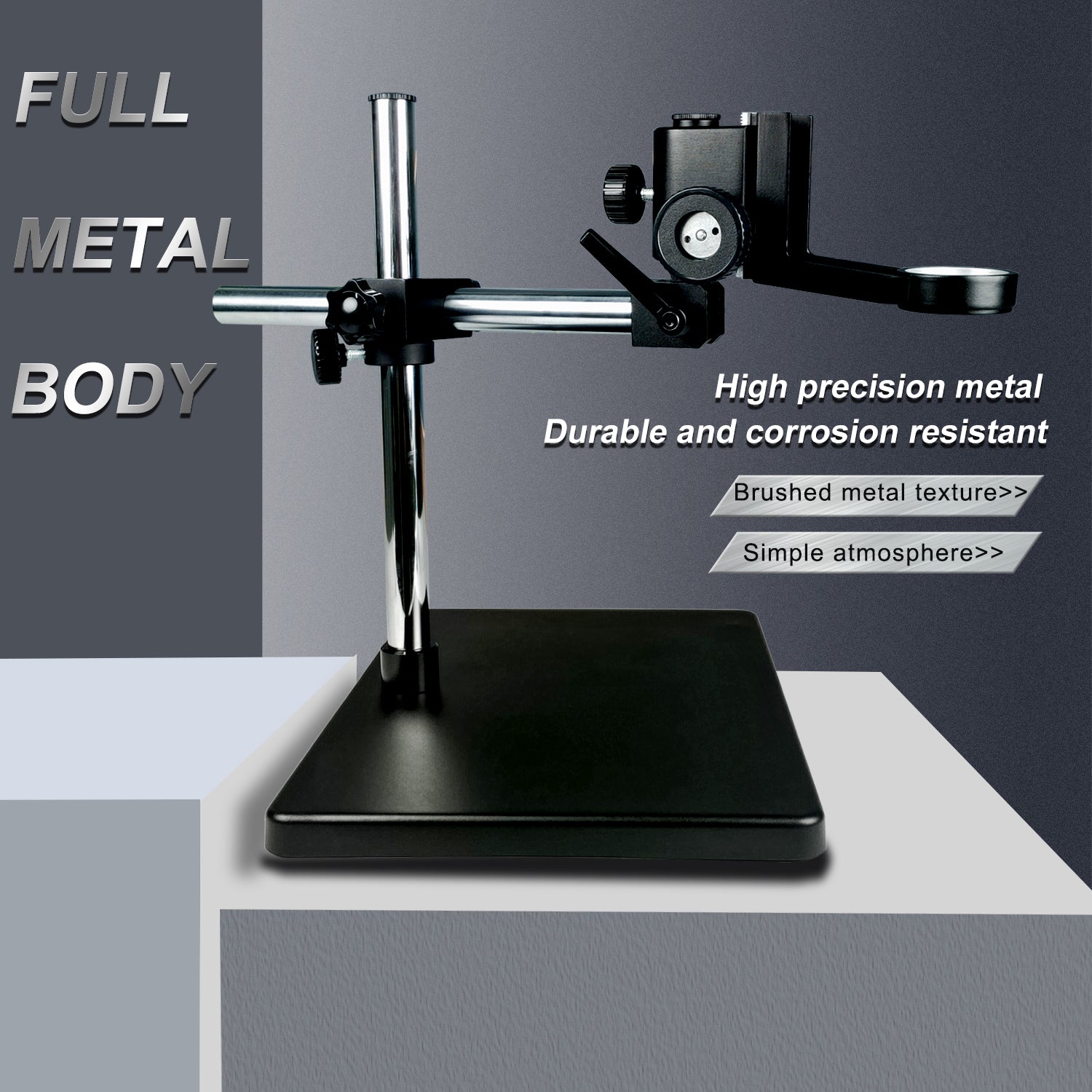

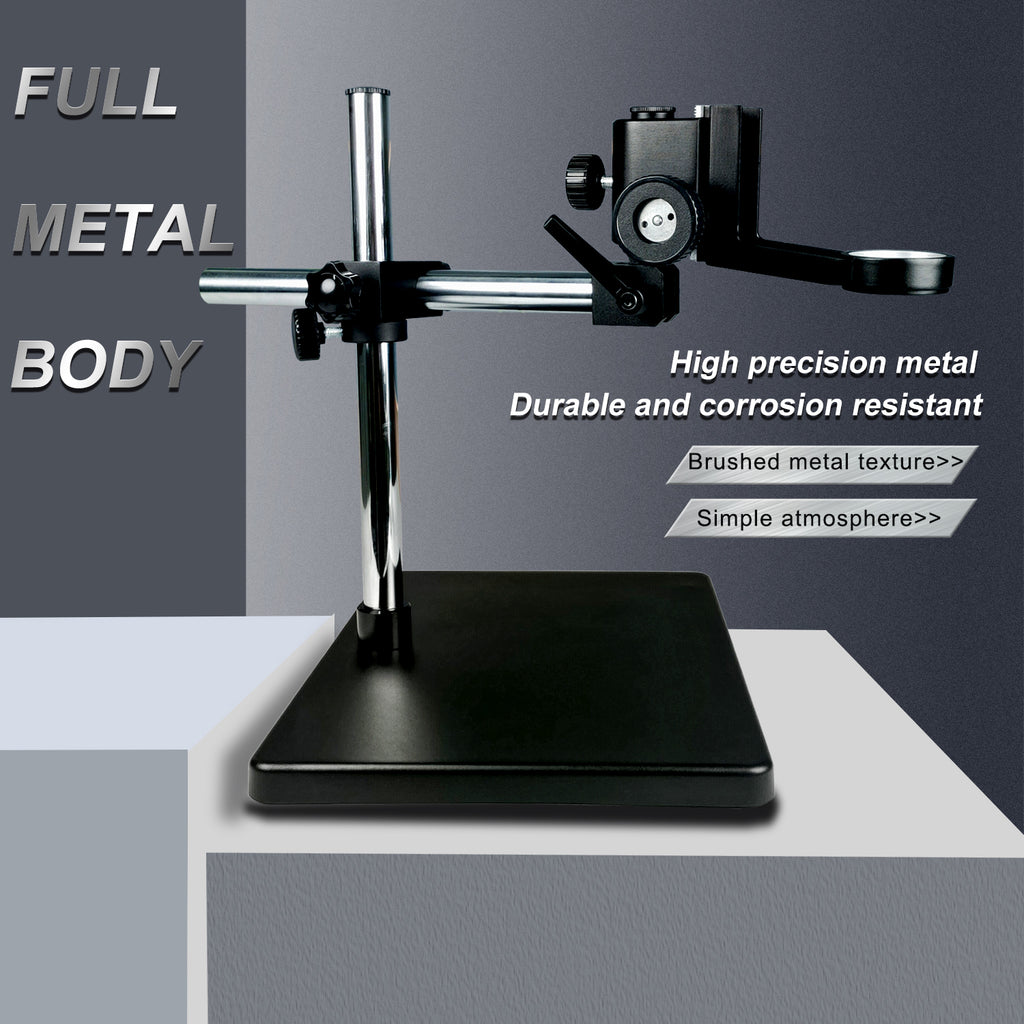

Heavy-Duty 180° Articulating Metal Stand

The premium metal stand features:

• 180° rotating arm
• Smooth angle adjustment
• Rigid metal construction
• Excellent vibration resistance
• Stable positioning during operation

Large base dimensions provide outstanding stability:

• Length: 10.2 in (260 mm)
• Width: 15 in (380 mm)
• Height: 12.9 in (328 mm)

The robust design minimizes image shake even during delicate soldering work.

XVH2003 Digital Microscope Camera

The included XVH2003 camera delivers crisp Full HD imaging for industrial inspection.

High-Quality CMOS Sensor

• Back-illuminated CMOS image sensor
• 1/2.8-inch image sensor
• Excellent light sensitivity
• Sharp image reproduction
• Accurate color performance

Full HD HDMI & VGA Output

Supports:

• HDMI 1080P output
• VGA 1080P output
• 30 fps real-time display
• Low-latency live viewing

Ideal for external monitors and industrial displays.

Professional Imaging Controls

The camera offers advanced image adjustment functions, including:

• Manual exposure
• Automatic exposure
• One-touch exposure
• Exposure compensation adjustment
• Manual white balance
• Automatic white balance
• One-touch white balance
• Independent RGB adjustment

These features help maintain consistent image quality under various lighting conditions.

Measurement & Inspection Tools

Built-in inspection functions include:

• 16 adjustable drawing lines
• Adjustable line color
• Adjustable line thickness
• Adjustable line position
• Center crosshair display
• Crosshair on/off control

Useful for component alignment, positioning, and visual comparison.

User-Friendly Operation

Additional features include:

• Chinese and English language support
• Automatic saving of camera settings after power-off
• Easy menu navigation
• Stable industrial performance

56-LED Adjustable Ring Light Included

The microscope comes with a 56-LED ring light that provides bright, even illumination.

Features:

• High-brightness LEDs
• Uniform shadow-free lighting
• Adjustable brightness
• Reduced glare
• Enhanced image clarity for reflective surfaces

Ideal for inspecting metal parts, solder joints, and electronic components.

Ideal Applications

The DW180X-XVH2003 is suitable for a wide range of professional applications:

• PCB inspection and repair
• Electronic soldering
• Mobile phone repair
• BGA rework
• SMT inspection
• Semiconductor inspection
• Precision manufacturing
• Industrial quality control
• Laboratory research
• Watch and jewelry repair
• Educational demonstrations
• Mechanical component inspection

Package Includes

• 1 × 180X Optical Microscope Lens
• 1 × XVH2003 HDMI/VGA Digital Camera
• 1 × Heavy-Duty 180° Articulating Metal Stand
• 1 × Large Steel Base
• 1 × 56-LED Adjustable Ring Light
• 1 × Power Adapter
• 1 × HDMI Cable
• 1 × VGA Cable
• 1 × Camera Power Cable
• Installation Accessories
• User Manual

Why Choose the DW180X-XVH2003?

• Complete all-in-one industrial microscope kit
• Up to 180X optical magnification
• Comfortable 100–150 mm working distance
• Stable 180° articulating metal stand
• Large heavy-duty base for vibration-free operation
• Full HD HDMI/VGA real-time output
• Professional exposure and white balance controls
• Built-in crosshair and drawing line functions
• 56-LED adjustable ring light included
• Ideal for electronics repair, inspection, manufacturing, and laboratory applications
