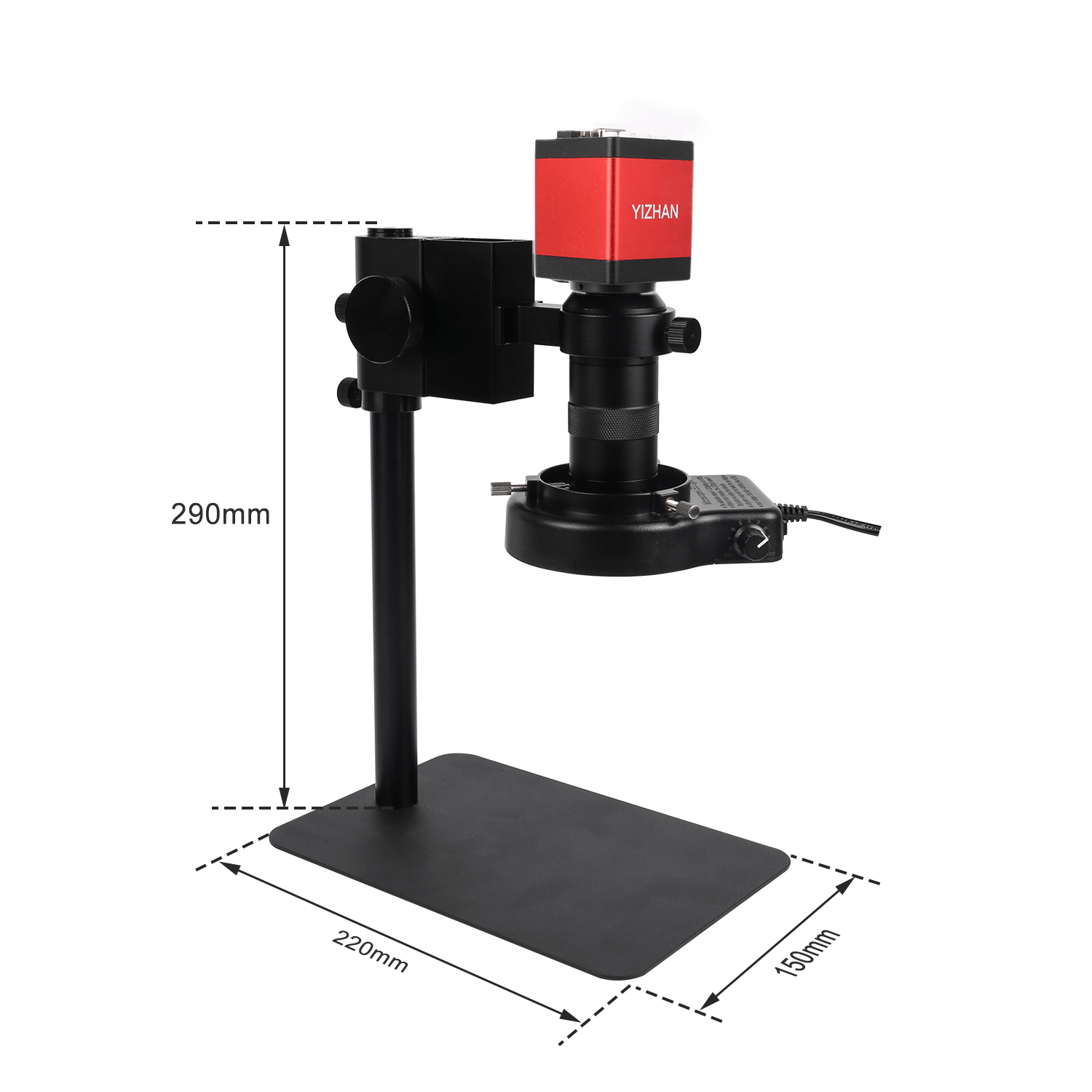

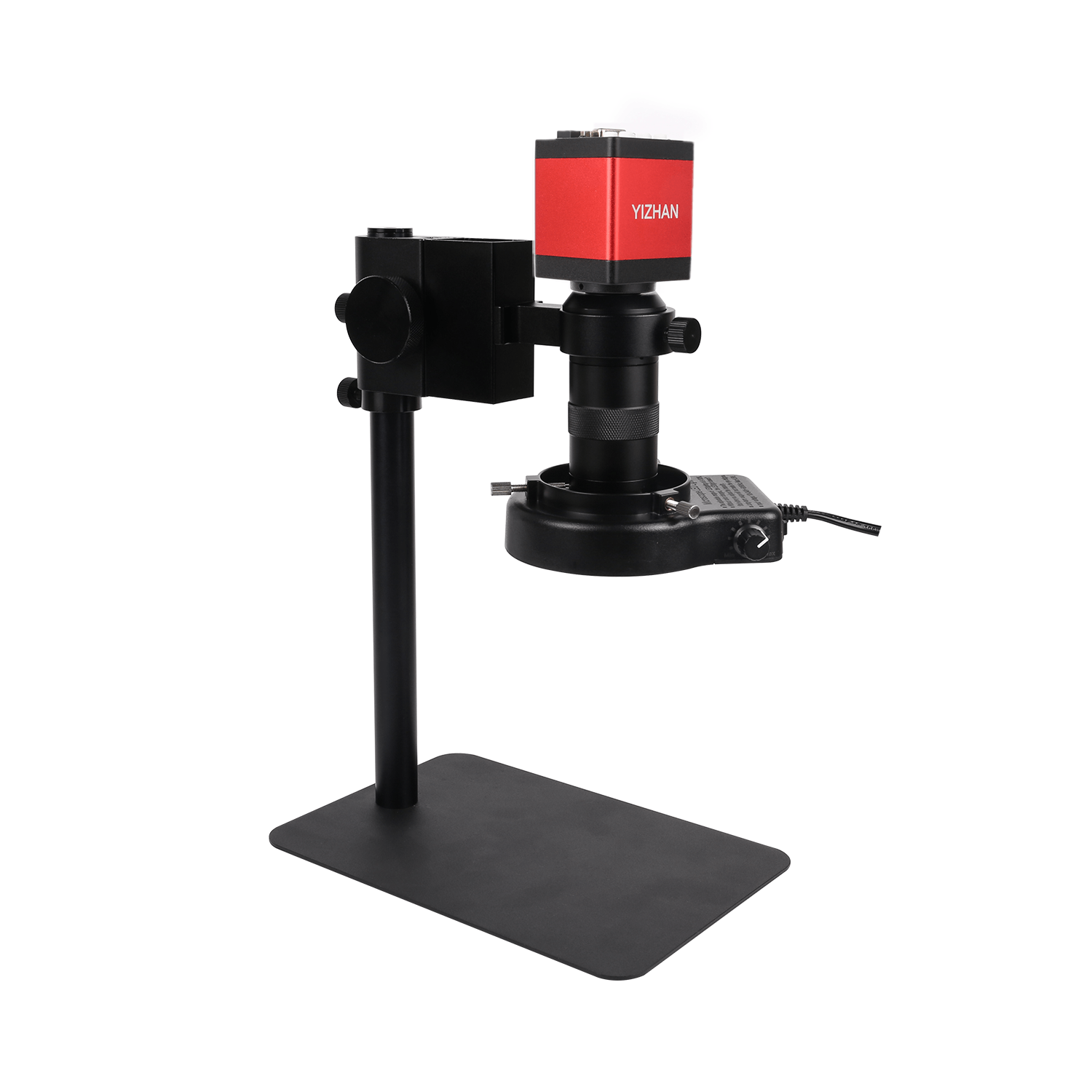

YIZHAN 13MP Didital Microscope, 1-130X Lens, HDMI Camera
SM130X-XVH2003 130X Industrial Digital Microscope with 13MP CCD Camera, VGA HDMI Output
The SM130X-XVH2003 Industrial Digital Microscope is a high-performance monocular microscope designed for electronics repair, PCB inspection, laboratory research, and industrial quality control.
Equipped with a 130X continuous zoom optical lens and 13MP CCD camera, this microscope delivers sharp and detailed images with smooth 1080P/60FPS video output. The built-in VGA and HDMI interfaces allow direct connection to monitors, displays, and recording devices, making it ideal for real-time observation and professional inspection workflows.
With manual focus adjustment, remote control operation, and adjustable working distance, the SM130X-XVH2003 provides precise control and flexibility for technicians, engineers, researchers, and educators.
Key Features

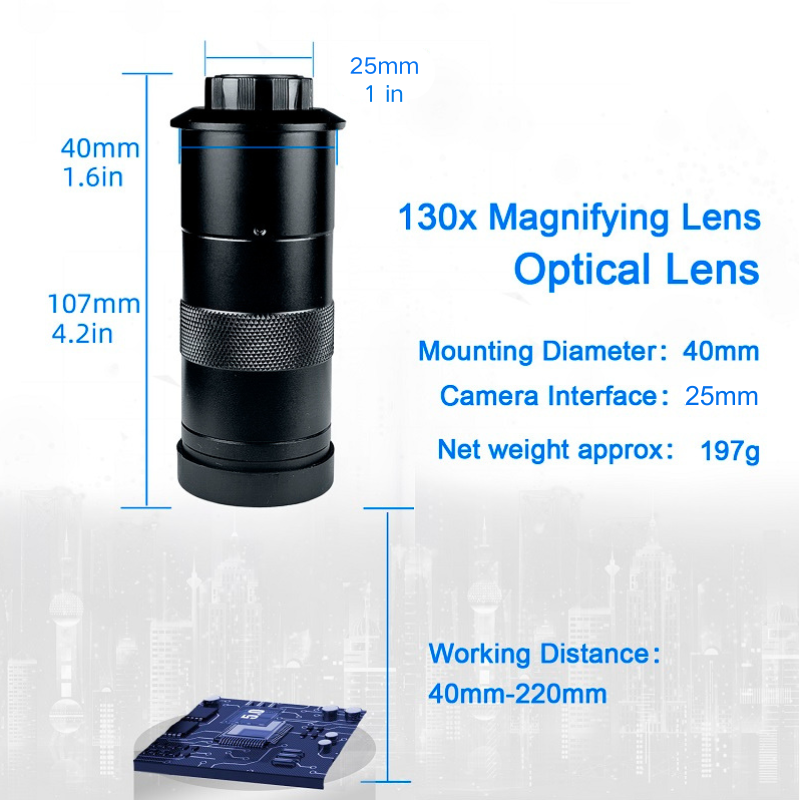

🔍 130X High Magnification Industrial Zoom Lens
The professional C-Mount zoom lens provides up to 130X magnification, allowing users to clearly observe tiny details such as:
- PCB components
- IC chips
- Solder joints
- Electronic circuits
- Precision mechanical parts
- Material surfaces
The adjustable magnification range provides both a wide overview and detailed close-up inspection.
📷 13MP CCD Camera with 1080P/60FPS Video Output
Built with a high-quality 13MP CCD image sensor, the microscope captures clear images with excellent color reproduction and stable performance.
Supports:
- 1080P high-definition video output
- 60FPS smooth live imaging
- High-detail image capture
- Real-time inspection display
Ideal for applications requiring accurate observation and documentation.
🖥 VGA & HDMI Dual Output for Large Screen Display
The SM130X-XVH2003 supports VGA and HDMI video output, allowing direct connection to:
✔ Industrial monitors
✔ LCD displays
✔ Projectors
✔ Recording equipment
No computer is required for basic operation, improving efficiency in workshops and laboratories.
🎯 Manual Focus Adjustment for Precise Imaging
The manual focusing system allows users to fine-tune image clarity according to different inspection requirements.
Adjustable working distance:
50mm–150mm
Suitable for:
- Soldering inspection
- Component analysis
- Repair operations
- Laboratory observation
🎮 Remote Control Operation
The included remote control enables convenient operation without touching the microscope body.
Users can easily:
- Capture images
- Adjust settings
- Control functions remotely
Improving workflow efficiency during inspection tasks.
💡 Compact & Professional Design
With a compact lens body measuring:
115mm × 40mm
the microscope is lightweight and space-saving, making it suitable for:
- Repair benches
- Production lines
- Laboratory stations
- Educational environments
Technical Specifications
| Item | Specification |
|---|---|
| Model | SM130X-XVH2003 |
| Microscope Type | Monocular Digital Microscope |
| Optical Magnification | 0.12X–2X |
| Maximum Magnification | 130X |
| Camera Sensor | 13MP CCD |
| Video Resolution | 1080P / 60FPS |
| Video Output | VGA + HDMI |
| Lens Mount | C-Mount |
| Working Distance | 50–150mm |
| Field of View | 2.4mm–32mm |
| Focus Adjustment | Manual Focus |
| Remote Control | Supported |
| Lens Dimension | 115mm × 40mm |
| Power Input | DC +5V / +12V |
Applications
🔧 Electronics Repair & PCB Inspection
Perfect for technicians working on:
- PCB circuit boards
- Mobile phone repair
- IC inspection
- Micro soldering
- Component testing
🏭 Industrial Quality Control
Suitable for precision inspection in:
- Electronics manufacturing
- Mechanical parts inspection
- Surface defect analysis
- Product quality testing
🧪 Laboratory Research
Useful for:
- Material observation
- Scientific experiments
- Sample inspection
- Research documentation
🎓 Education & Training
Ideal for:
- Schools
- Universities
- Technical training centers
Helping students understand microscopic structures through real-time display.

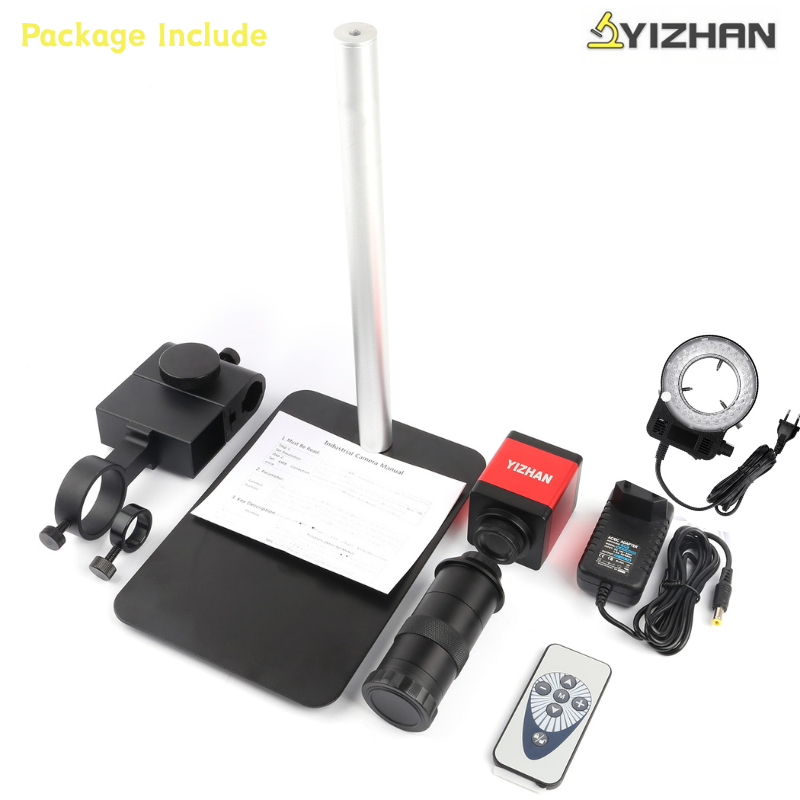

Package Includes
✔ 1 × SM130X-XVH2003 Monocular Digital Microscope
✔ 1 × Ring Light
✔ 1 × Remote Control
✔ 1 × Power Cable
Why Choose SM130X-XVH2003?
✔ Professional 130X industrial zoom lens
✔ High-quality 13MP CCD camera
✔ Smooth 1080P/60FPS live video
✔ Direct VGA & HDMI connection
✔ Adjustable working distance for flexible inspection
✔ Ideal for electronics repair and industrial applications
The SM130X-XVH2003 Digital Microscope provides a reliable and efficient solution for professionals who need accurate magnified imaging, real-time display, and precise inspection capabilities.
