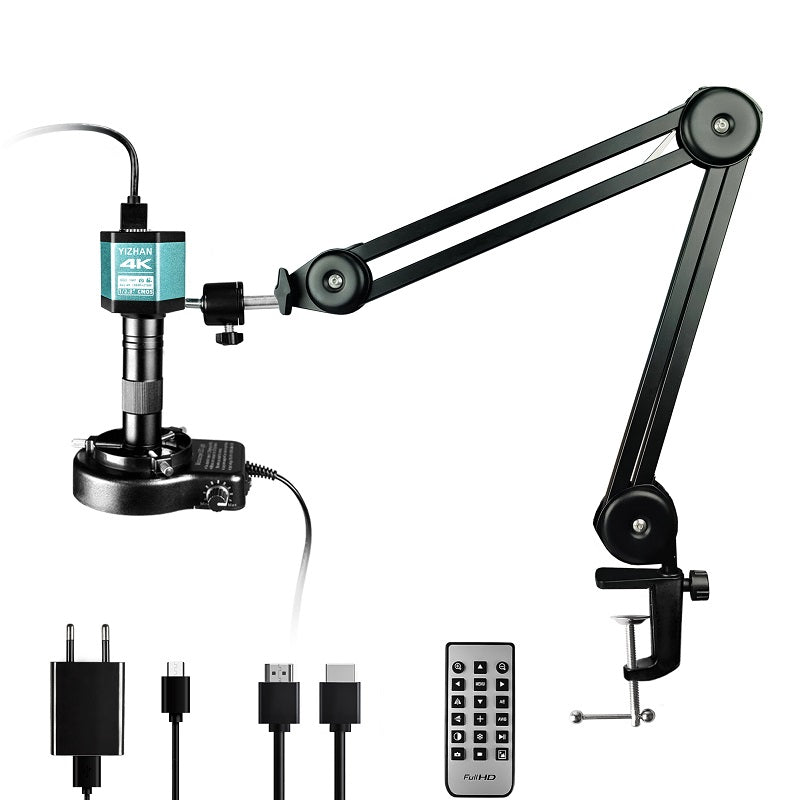

YIZHAN 150X 4K Digital Microscope Kit with CMOS Camera, HDMI & Type-C Output, C-Mount Zoom Lens and Foldable Metal Arm Stand
150X 4K Digital Microscope with Sony 8.29MP CMOS Camera, HDMI & Type-C Output, Foldable Metal Arm Stand
Product Overview
The YIZHAN 150X 4K Digital Microscope Kit is a professional inspection solution designed for PCB inspection, electronics repair, soldering, industrial inspection, and precision observation.
This complete microscope system includes a 0.15X-2X continuous zoom C-Mount microscope lens, XHU4006 4K digital microscope camera, a reinforced foldable metal arm stand, and a 56-LED adjustable ring light.
Equipped with an imported Sony 8.29MP CMOS image sensor, the XHU4006 camera delivers high-quality 4K imaging with HDMI and Type-C dual output, providing clear and detailed images for professional applications.

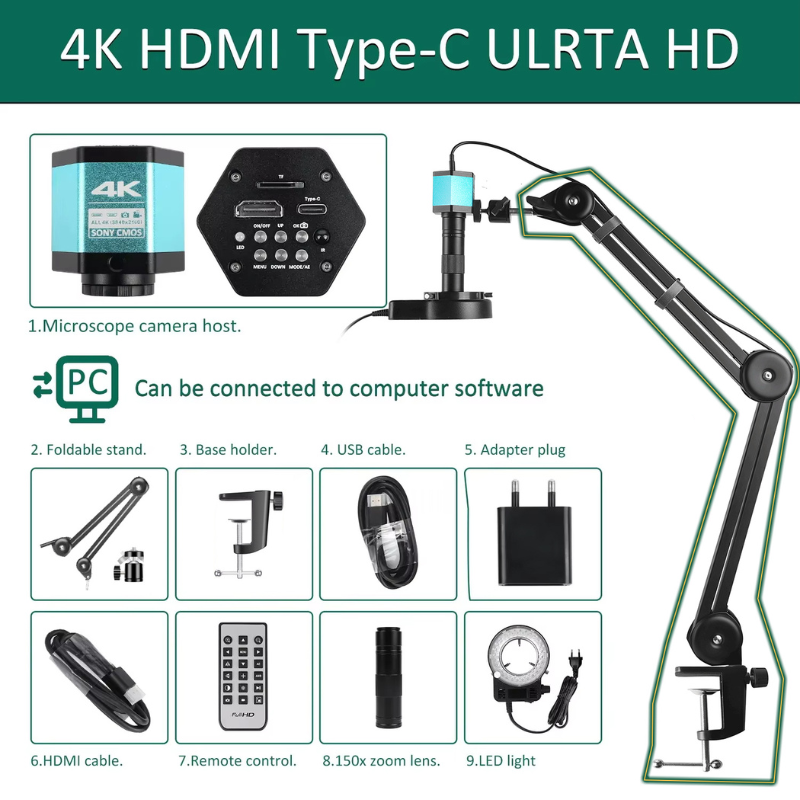

Package Includes
- 1 × XHU4006 4K Digital Microscope Camera
- 1 × 1-150X C-Mount Zoom Microscope Lens
- 1 × Reinforced Foldable Metal Arm Stand
- 1 × 56-LED Adjustable Ring Light
- 1 × Remote Control
- Accessories
1-150X Continuous Zoom C-Mount Microscope Lens
The included industrial zoom lens provides flexible magnification adjustment from 0.15X to 2X optical zoom, achieving approximately 1X-150X display magnification depending on the connected display size and camera settings.
Lens Specifications
- Mount Interface: Standard C-Mount
- Magnification Range: Approx. 1X-150X (on display)
- Optical Zoom Range: 0.15X-2X
- Working Distance: 50mm-1000mm
- Lens Diameter: 28mm
- Lens Length: 99mm
- Focus Adjustment: Manual focus
- Application: PCB inspection, electronic repair, industrial quality control
The long adjustable working distance allows users to easily operate tools underneath the lens, making it ideal for soldering and repair work.
XHU4006 4K Digital Microscope Camera
The XHU4006 microscope camera uses an imported Sony 8.29MP CMOS image sensor and advanced image processing technology to provide sharp, accurate, and high-resolution images.
High-Resolution Imaging Performance
- Image Sensor: Sony 8.29MP CMOS Sensor
- Sensor Size: 1/2.8 inch
- 4K Video Output: HDMI 3840 × 2160 @ 30FPS
- Full HD Output: 1080P @ 60FPS
- 4K Video Recording
- 4K Photo Capture

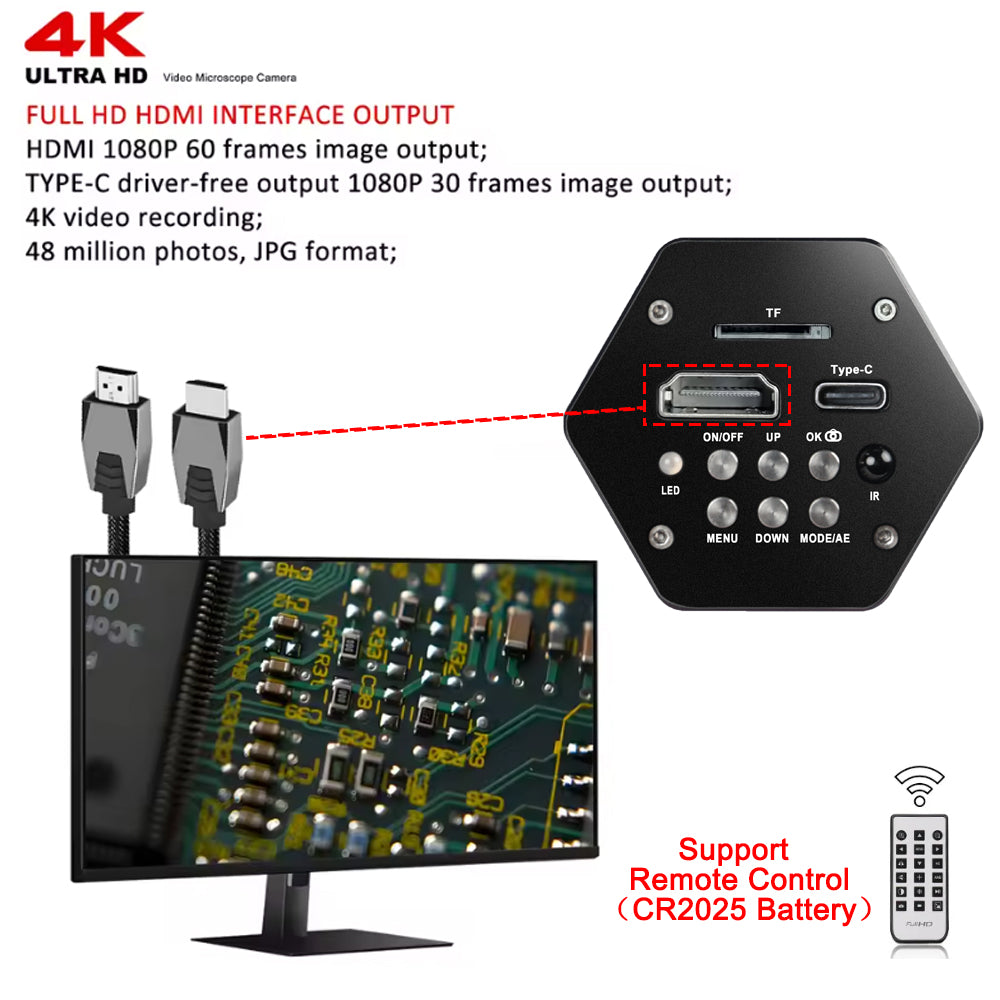

HDMI & Type-C Dual Output
The camera supports multiple connection methods for flexible viewing and recording.

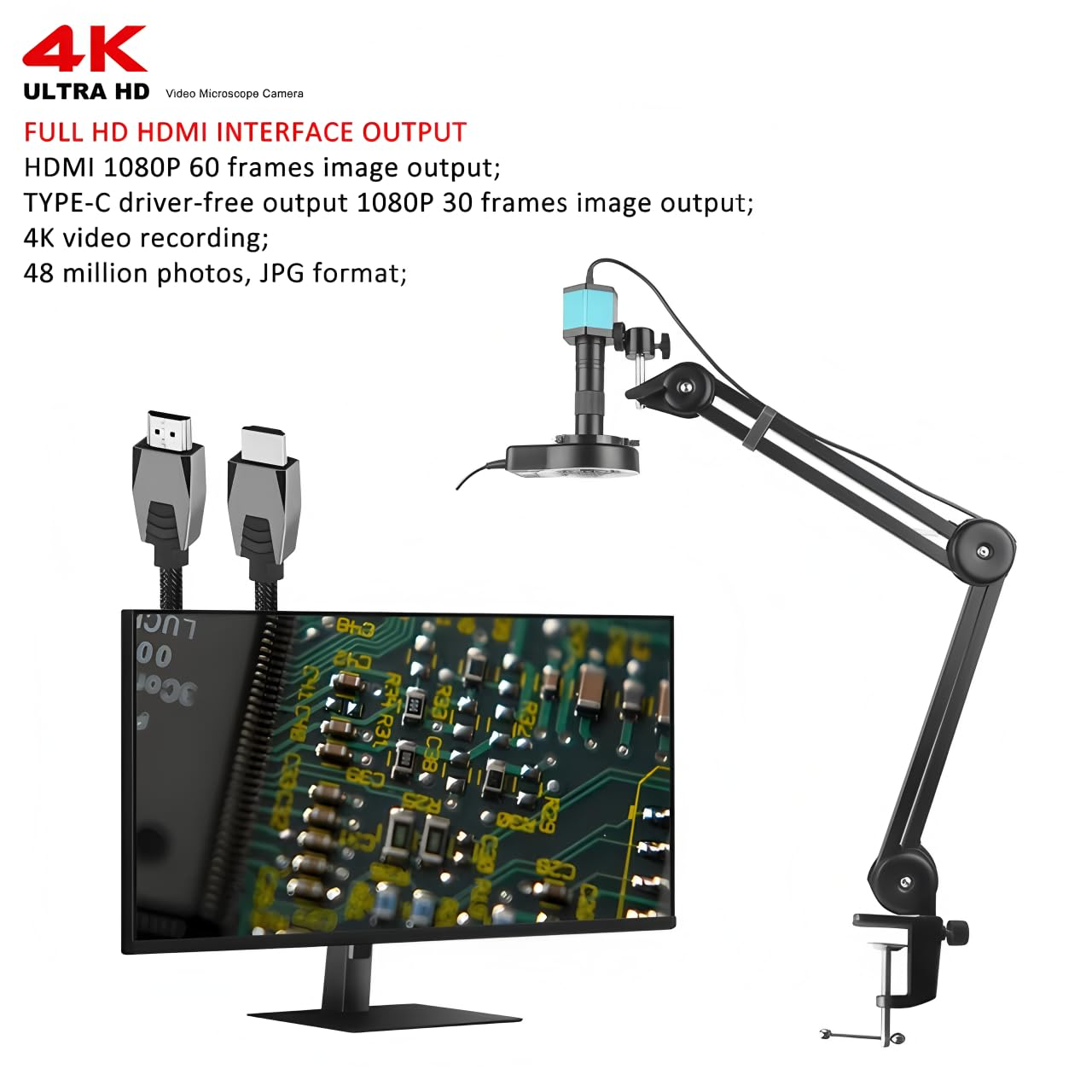

HDMI Output
- Direct connection to HDMI monitors and displays
- Supports:
- 3840 × 2160 4K @ 30FPS
- 1080P @ 60FPS

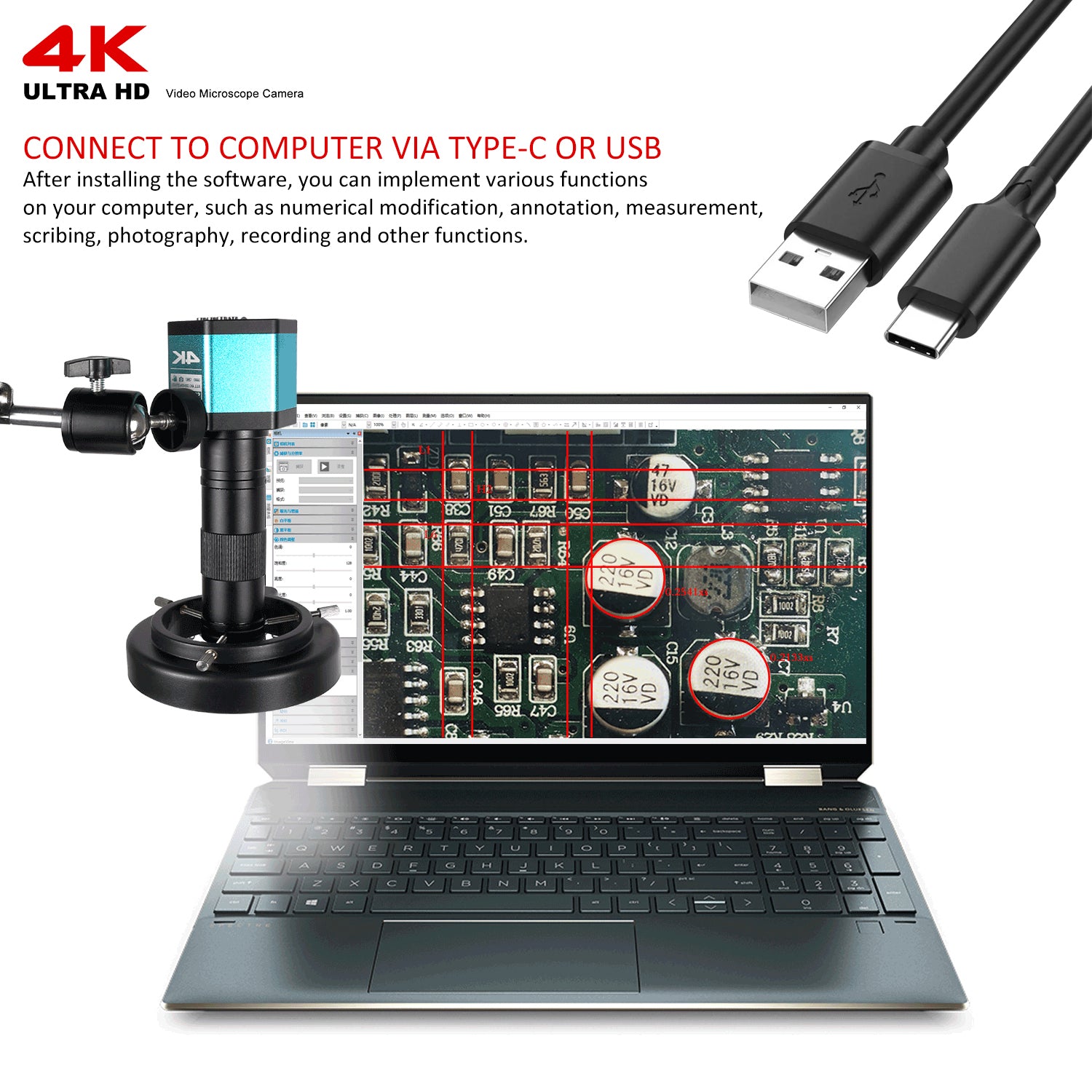

Type-C Output
- Driver-free computer connection
- Supports:
- 3840 × 2160 4K @ 30FPS
No additional driver installation is required, providing a simple plug-and-play experience.
Professional Camera Functions
Image Adjustment Features
- One-button image freeze / unfreeze
- Electronic zoom function
- Manual and automatic exposure
- Exposure compensation adjustment
- Manual and automatic white balance
- RGB color adjustment (Red / Green / Blue)
Inspection & Measurement Functions
- 16 adjustable guide lines
- Adjustable line color
- Adjustable line thickness
- Adjustable line position
- Center crosshair display ON/OFF
- TF card storage support
- Maximum TF card capacity: 64GB
Convenient Operation
- Wireless remote control operation
- Remote photo capture reduces vibration and improves image clarity
- Supports Chinese and English menu languages (English default)
- Saves settings after power-off
Durable Camera Housing
- Solid metal housing design
- Strong and durable for professional environments

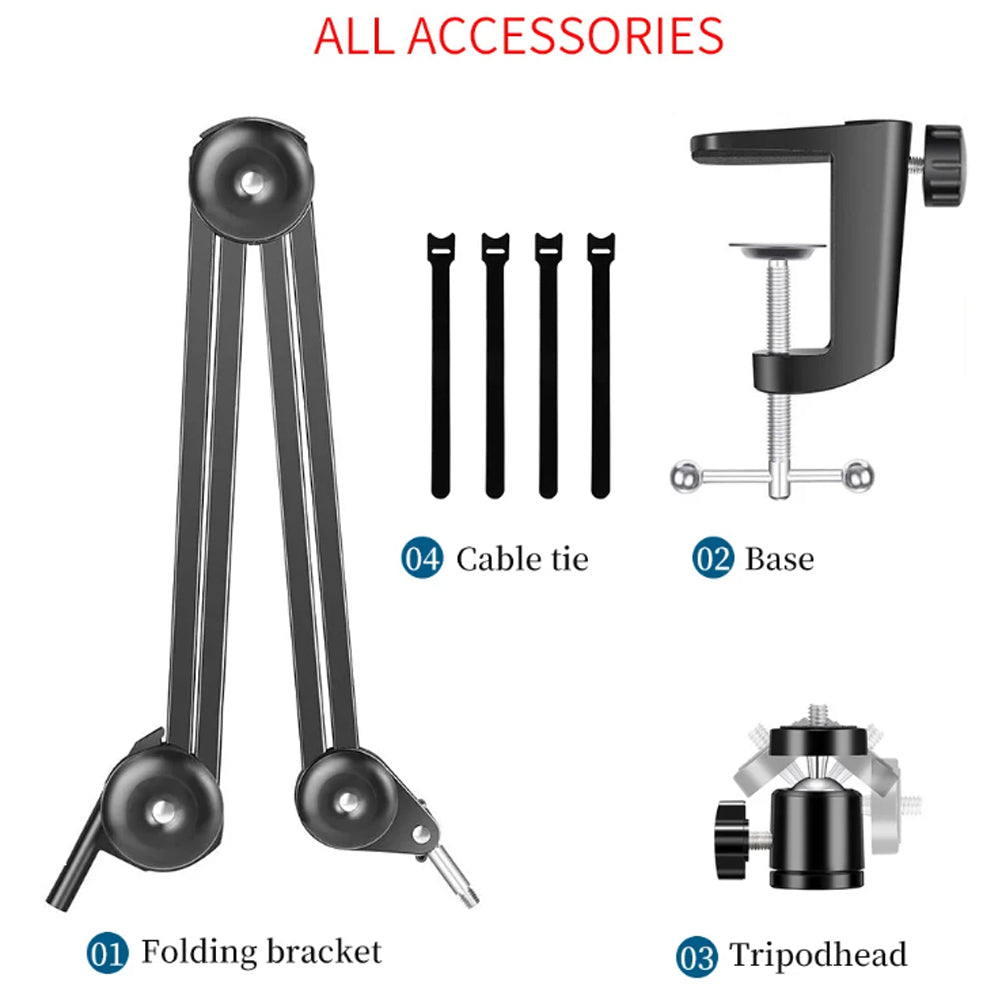

Reinforced Foldable Metal Arm Stand
The included heavy-duty metal arm stand provides excellent stability and flexibility during inspection.
Stand Features
- Reinforced metal construction
- Excellent vibration resistance
- Stable structure for precise observation
- 180° adjustable arm angle
- Foldable design for easy storage and transportation
Compared with lightweight plastic stands, the metal folding arm provides stronger support and reduces image shaking during operation.
56-LED Adjustable Ring Light
The microscope comes with a high-brightness LED ring light to provide uniform illumination for different inspection conditions.
Ring Light Features
- 56 LED bulbs
- Adjustable brightness control
- Even lighting distribution
- Reduces shadows and reflections
- Suitable for PCB, electronic components, and precision parts inspection
Main Applications
The YIZHAN 150X 4K Digital Microscope Kit is ideal for:
- PCB inspection
- Electronics repair
- Soldering and rework
- Circuit board analysis
- Semiconductor inspection
- Industrial quality control
- Precision component inspection
- Mechanical part inspection
- Laboratory observation
- Jewelry and small object inspection
