ZDT150X-XVH2003 Digital Microscope Camera – 150X HDMI Industrial Inspection System
The ZDT150X-XVH2003 is a professional-grade digital microscope designed for precision electronics repair, industrial inspection, laboratory analysis, and educational demonstrations. Featuring a powerful 8X–150X zoom range, a high-performance 13MP GC2053 sensor, and ultra-smooth 60FPS HDMI/VGA output, it delivers sharp real-time imaging for detailed observation and accurate inspection work.
Key Features
-
150X High-Power Zoom
- Wide 8X–150X magnification range
- 6.5:1 zoom ratio for flexible close-up inspection
-
13MP High-Definition Imaging
- Equipped with GC2053 1/3" image sensor
- Large 2.8μm pixels for enhanced clarity and low-light performance
-
Ultra-Smooth 60FPS Video Output
- Real-time imaging with minimal lag
- Ideal for soldering, PCB repair, and precision work
-

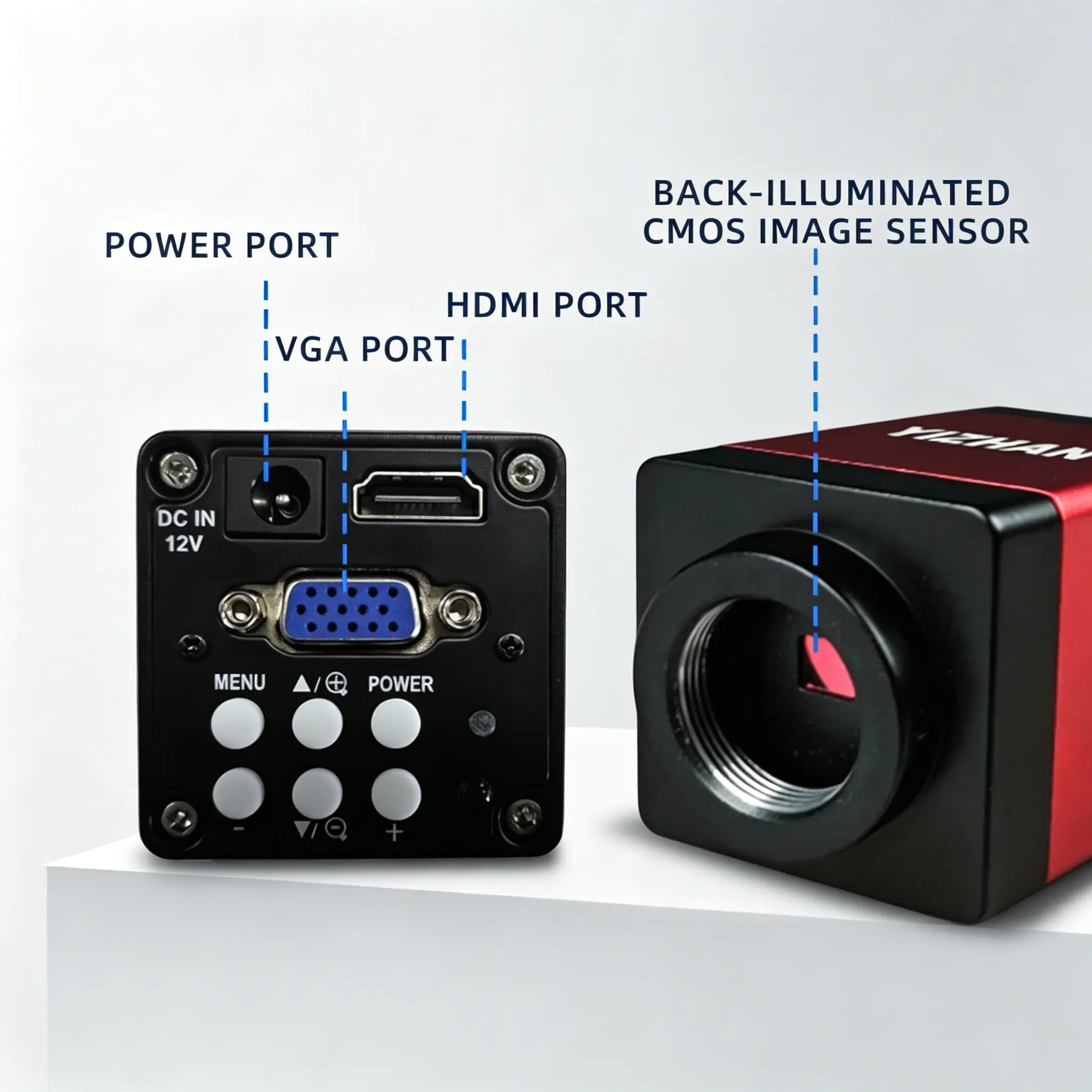

Dual Video Connectivity
- HDMI and VGA outputs supported
- Compatible with multiple monitor and display systems
-
Professional Image Adjustment
- Adjustable brightness, contrast, saturation, and sharpness
- Black & white mode and negative image mode available
-
Built-In Measurement Assistance
- 8-color adjustable cross lines
- Variable line thickness for accurate positioning and inspection
-
Advanced Display Functions
- Image freeze and image comparison
- Horizontal and vertical mirror flip
-
Compact Industrial Design
- Lightweight and durable aluminum construction

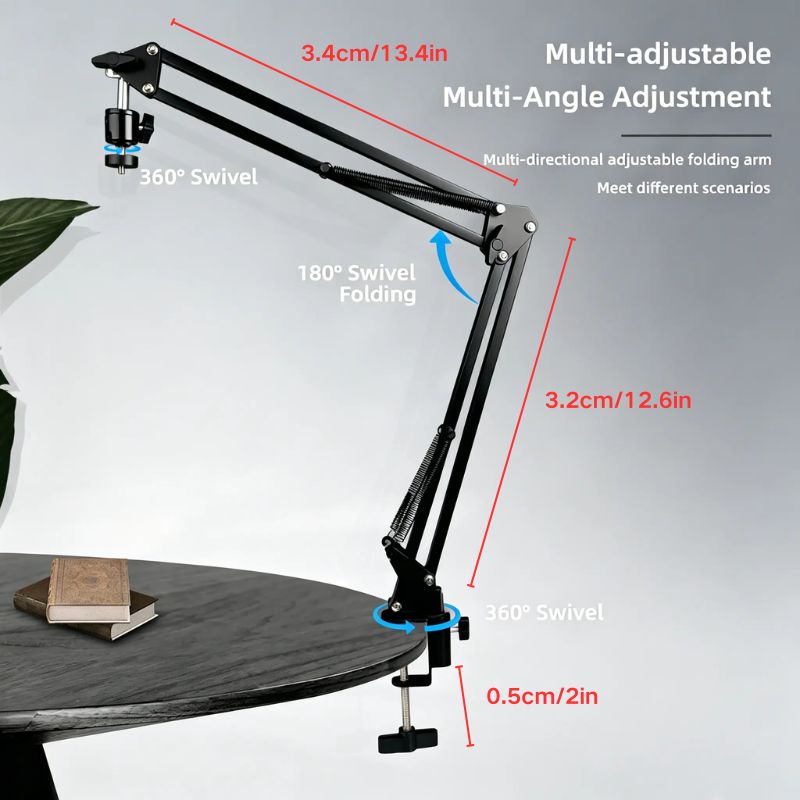

- Easy integration with microscope stands and inspection stations
Technical Specifications
| Specification | Details |
|---|---|
| Model | ZDT150X-XVH2003 |
| Zoom Range | 8X–150X |
| Zoom Ratio | 6.5:1 |
| Sensor | 13MP GC2053 |
| Sensor Size | 1/3" |
| Pixel Size | 2.8μm × 2.8μm |
| Video Output | HDMI / VGA |
| Frame Rate | 60FPS |
| HDMI Resolution | 16:9 / 4:3 |
| VGA Resolution | 1920×1080 to 800×600 |
| Lens Mount | C/CS Mount |
| Working Distance | 50–155mm |
| Power Supply | DC 12V / 150mA |
| Lens Dimensions | 175 × 50mm |
| Camera Dimensions | 75 × 50 × 50mm |
| Lens Weight | 0.57kg |
| Camera Weight | 250g |

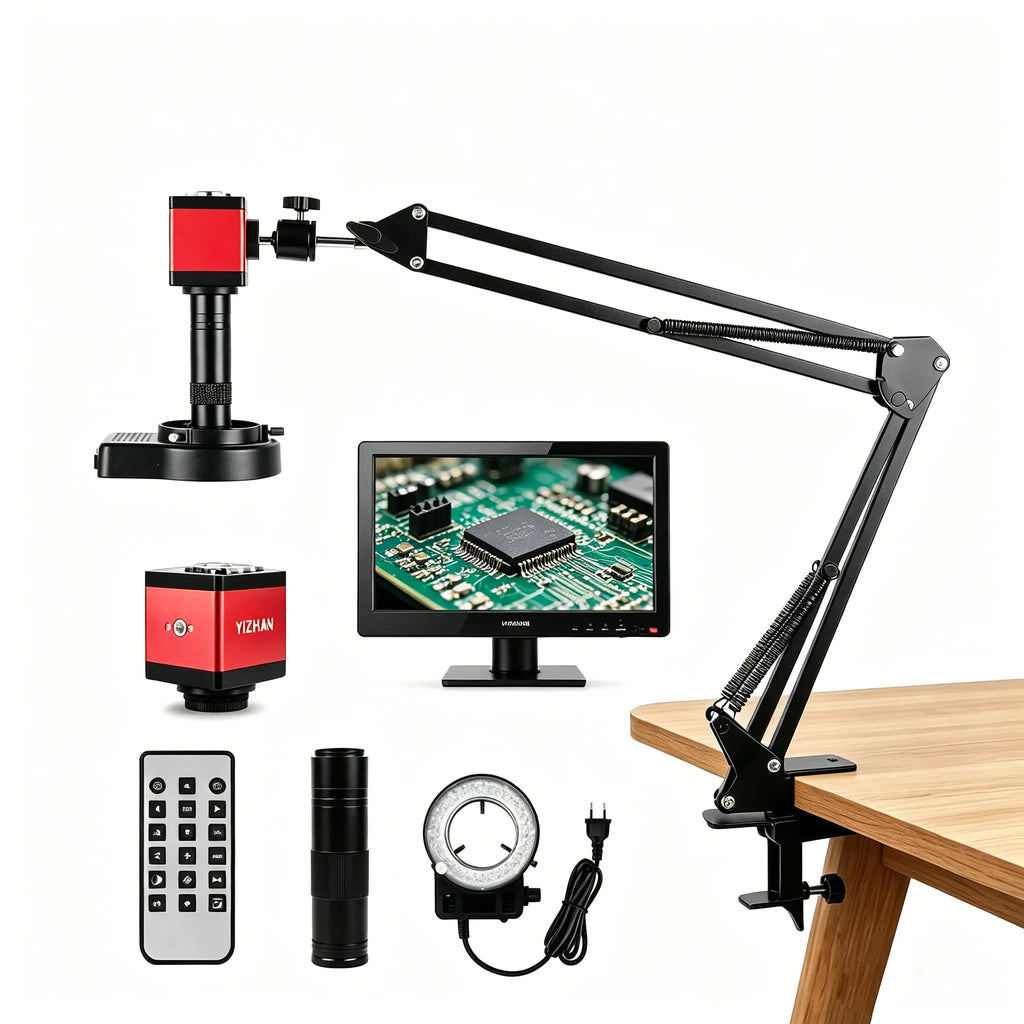

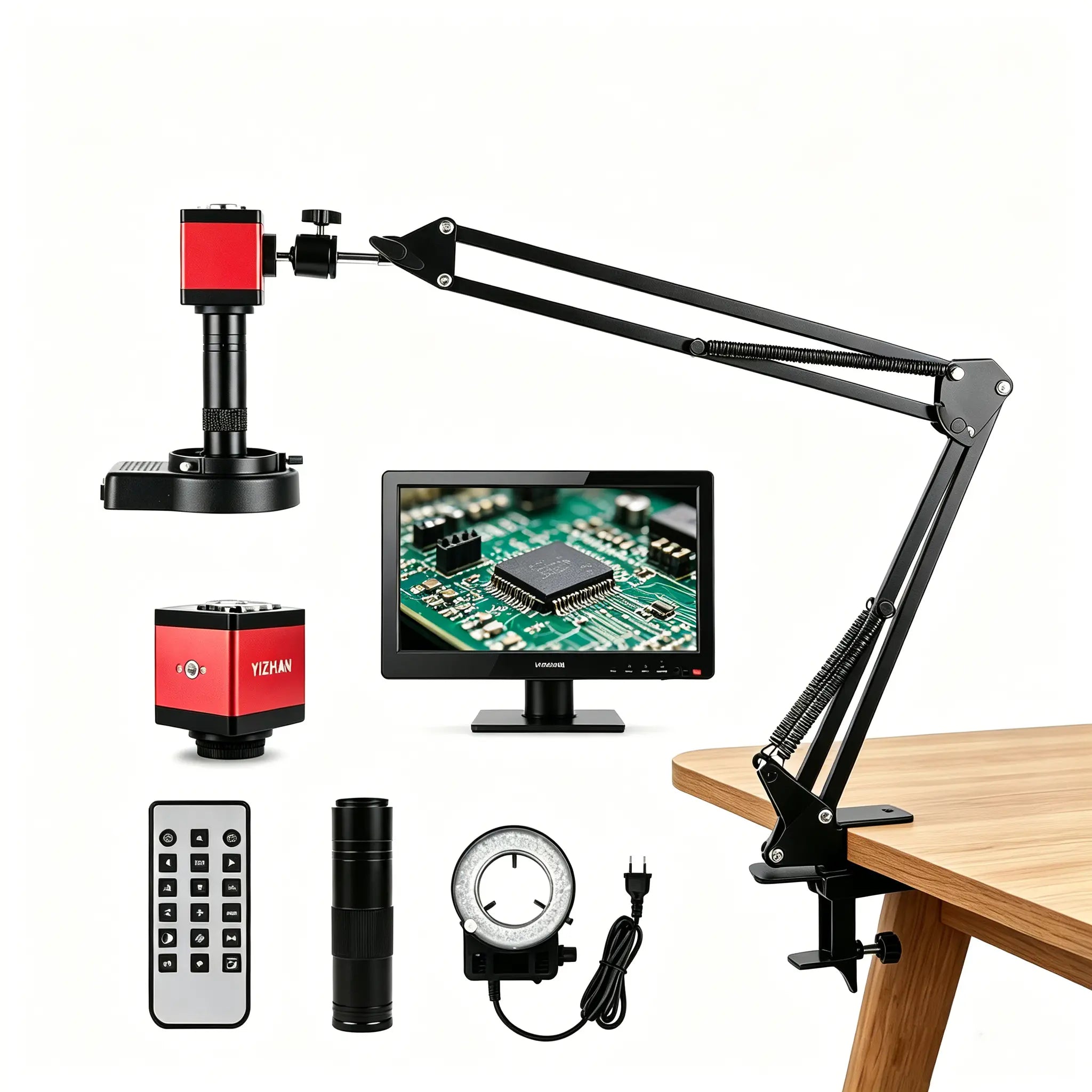

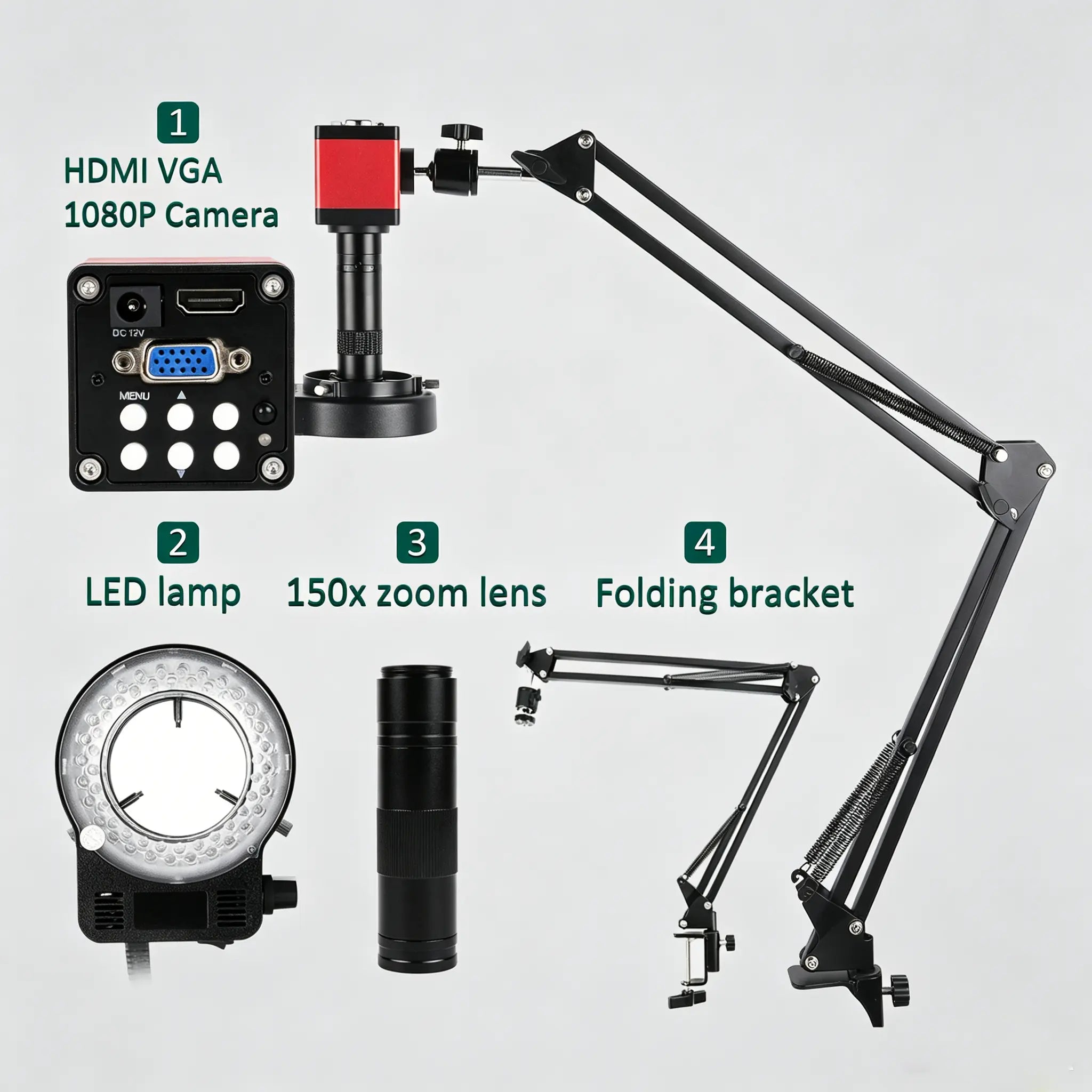

Package Includes
- 1 × ZDT150X-XVH2003 Microscope Camera

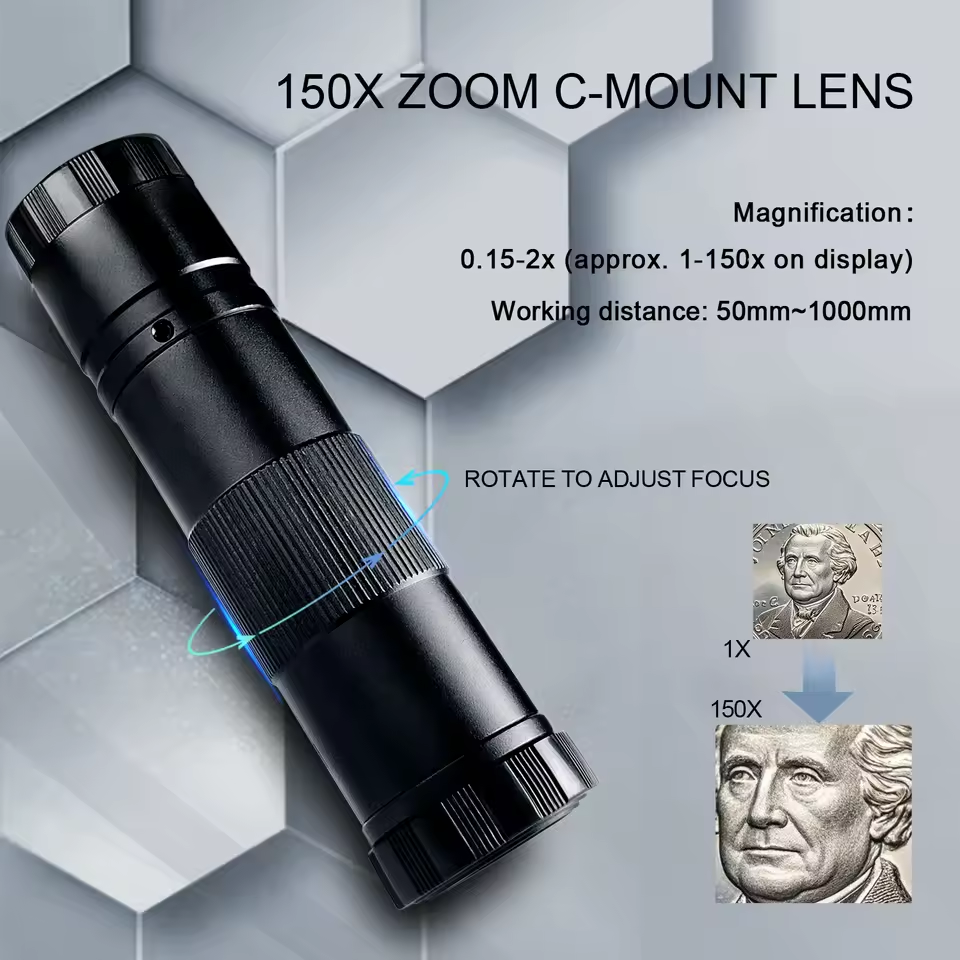

- 1 × 150X C-Mount Zoom Lens
- 1 × 0.5X C-Mount Adapter
- 1 × Power Adapter
- 1 × HDMI Cable
- 1 × VGA Cable
Applications

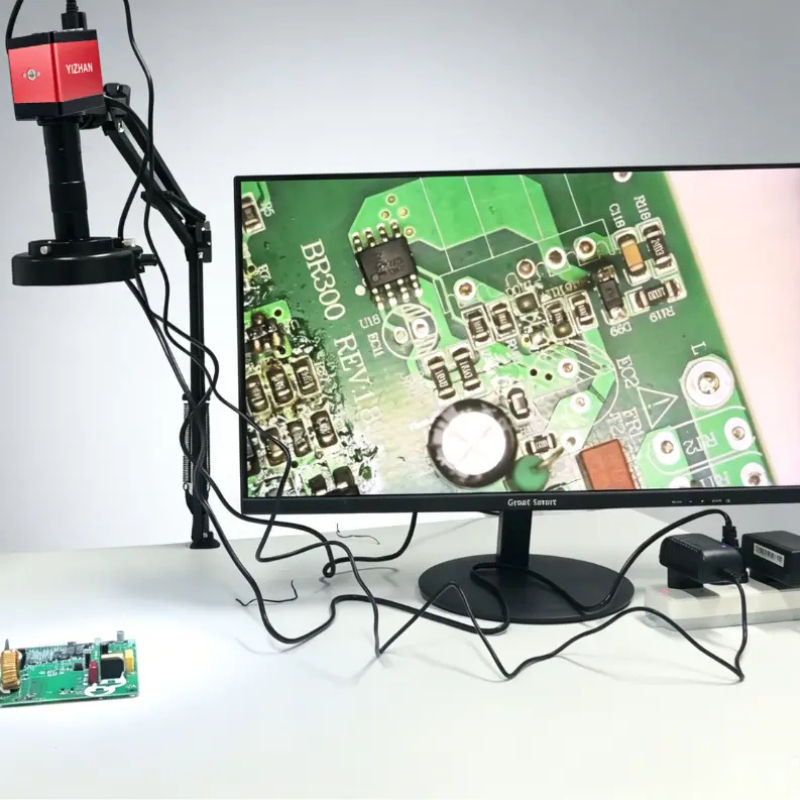

Electronics Repair
Perfect for PCB inspection, micro soldering, IC repair, and circuit diagnostics.
Industrial Quality Control
Suitable for precision measurement, component inspection, and manufacturing verification.
Laboratory Research
Supports sample observation, image comparison, and documentation tasks.
Education & Training
Ideal for classroom demonstrations, technical training, and scientific teaching environments.
Why Choose the ZDT150X-XVH2003?
With high-definition imaging, smooth 60FPS performance, and versatile HDMI/VGA connectivity, the ZDT150X-XVH2003 provides a reliable and professional microscopy solution for technicians, engineers, researchers, and educators who require precision visual inspection and detailed real-time observation.
The required software has not been sent/installed.
Test with multiple software. Check if the camera appears in the computer's Device Manager.
Check if the adapter plug is damaged (replace it for testing).
Red means the camera cannot be started or has stopped working (firmware reflash may be required). Orange means normal operation.
Check if the camera has an SD card (max. 32GB, read/write speed > 10MB/s) or USB drive inserted.
The monitor's resolution or refresh rate is not supported. Change or adjust the resolution to 1920*1080P.
First, restore the camera to factory settings. If the issue persists, adjust the color parameters.
Check if the battery (CR2025) is installed. The remote control only works in HDMI output mode.
Re-plug the USB drive multiple times and ensure it is fully inserted into the port.
UVC protocol (Microsoft's universal video class protocol).
