YIZHAN XHU4002 4K 48MP Microscope Camera
Download English Manual (PDF)
Click the link above to get the full user guide for this product.
Specification Table
| Item | Parameters |
|---|---|
| Product Model | XHU4002 |
| Image Sensor | 48MP Panasonic CMOS |
| Output Interface | HDMI + USB2.0 Dual Output |
| HDMI Output | 1920×1080@60fps real-time display |
| System Compatibility | Windows / macOS |
| Max Image Resolution | 8000×6000 Pixels |
| Video Format | MOV (4K/2K/1080P/720P) |
| 4K Video Frame Rate | 25fps |

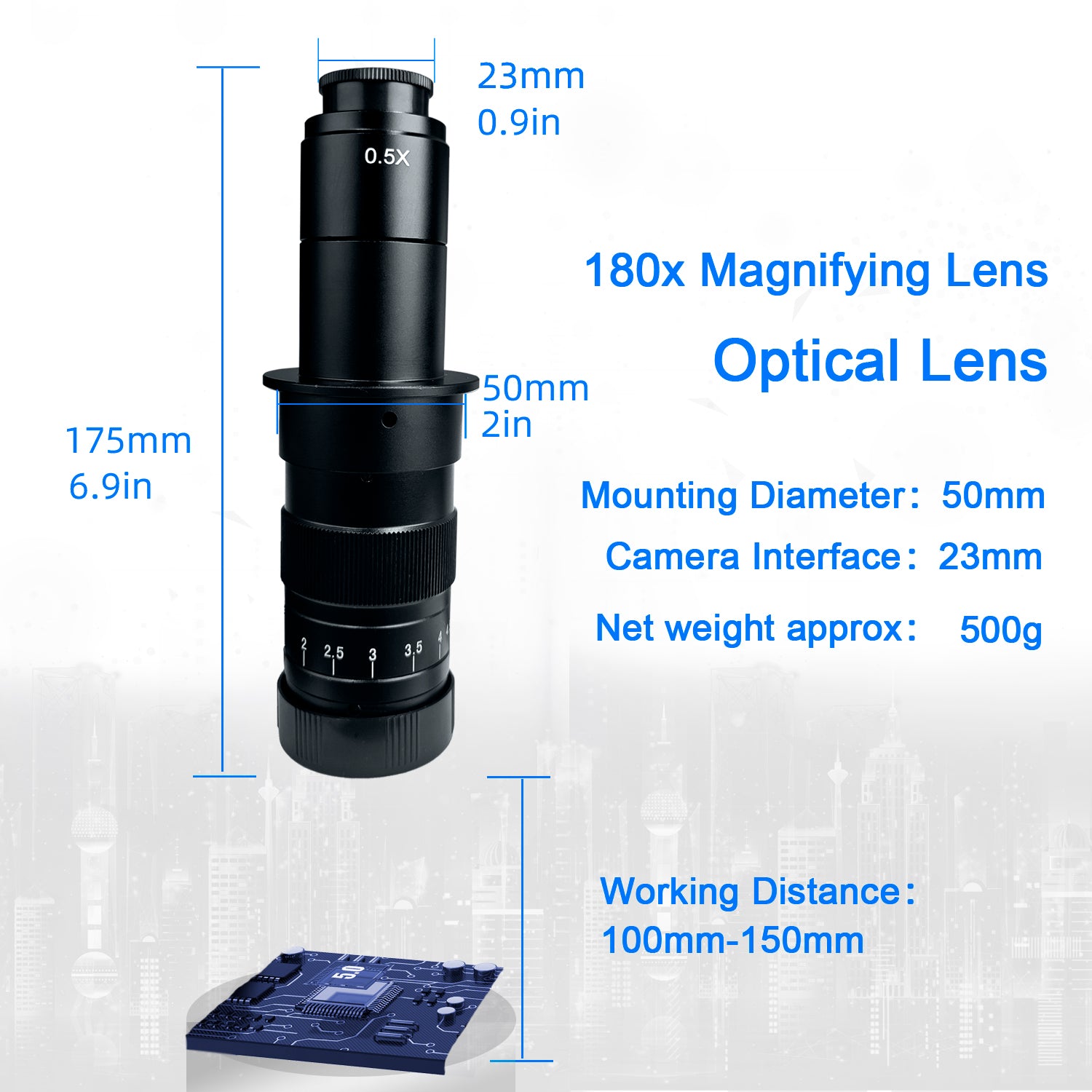

| Zoom Range | 1-180X Optical Zoom, 5X Digital Zoom |
| Lens Interface | C-Mount |
| TF Card Max Support | 64GB (Class 10 Recommended) |
| Power Supply | 5-12V DC, 1A |
| Display Aspect Ratio | 16:9 / 16:10 / 4:3 |
| Adjustment Function | Auto/Manual White Balance, Multi-color Resizable Crosshair, 15×15 Grid, Mirror Image, 50/60Hz Frequency Switch |
| Device Material | All-metal Housing |
| System Language | English / Chinese / French / Spanish |
| Main Application | PCB repair, mobile maintenance, industrial inspection, textile analysis, scientific research, antique & jewelry identification, teaching experiment |

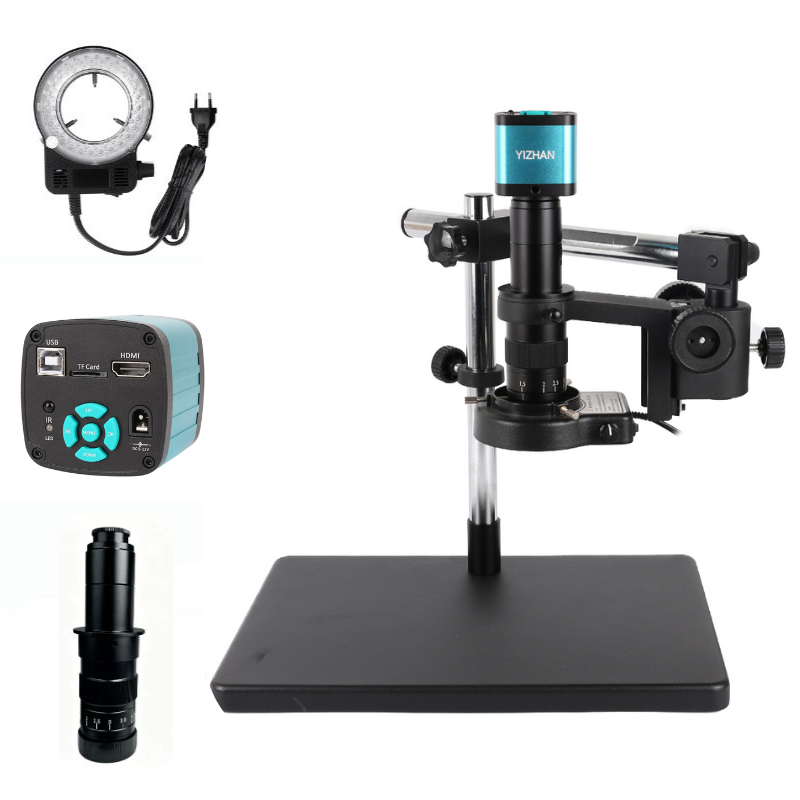

| Package Contents | Microscope camera set, 180X lens, 56 LED ring light, rotary large stand |
FAQ
-
Can it connect to monitor directly?Yes. HDMI port supports 1080P 60fps real-time display without computer.
-
Which operating systems are compatible?Works with Windows and macOS via USB 2.0 connection.
-
What is the maximum TF card capacity supported?Up to 64GB. Class 10 high-speed card recommended for 4K recording.
-
What is the zoom range?1-180X optical zoom plus 5X digital zoom.
-
Can I adjust color and measurement scale?Auto/manual white balance, adjustable crosshair, grid lines, mirror mode and frequency switch available.
-
Multi-language support?English, Chinese, French and Spanish optional.
-
What are applicable scenarios?PCB repair, cellphone maintenance, industrial inspection, textile analysis, scientific research, jewelry & antique identification.
Package List
- Microscope camera set ×1

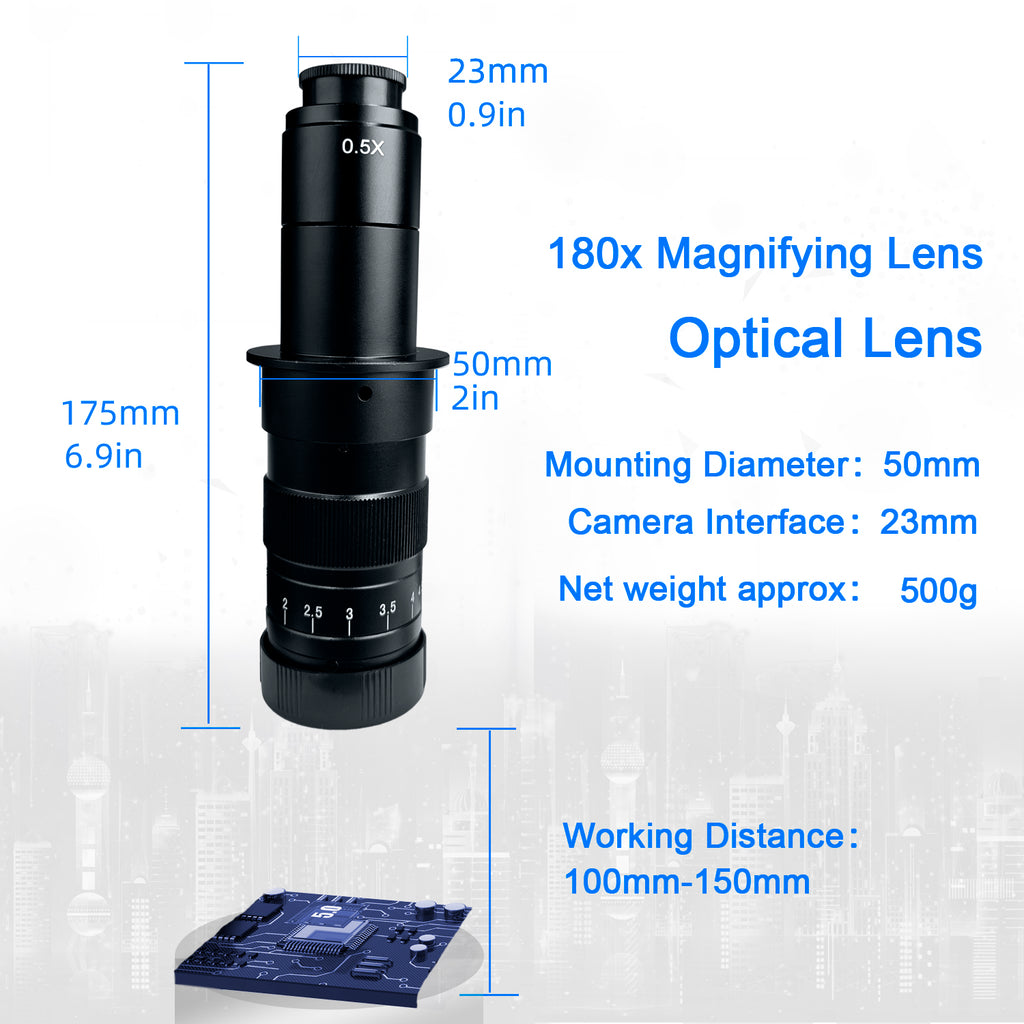

- 180X zoom lens ×1
- 56 LED ring light ×1

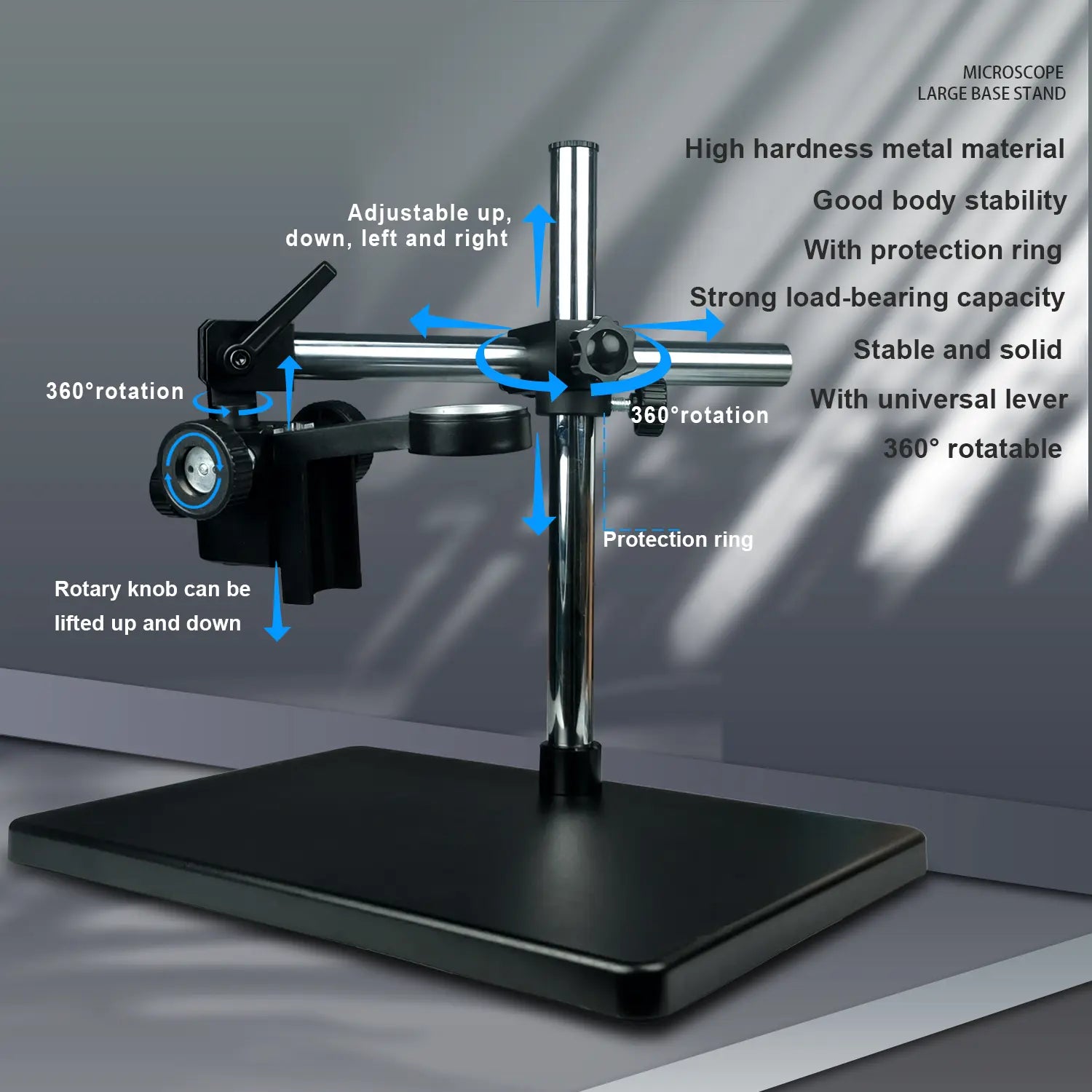

- Rotatable metal stand ×1
After-sales Policy
- All-metal structure ensures stable long-term performance under normal use.
- Warranty valid for non-artificial quality defects.
- Avoid collision, water damage and unauthorized disassembly.
- Use Class 10 TF card for smooth 4K video recording.
- Official software available via provided link; contact support for installation issues.
- Only apply 5-12V DC 1A power supply.
The required software has not been sent/installed.
Test with multiple software. Check if the camera appears in the computer's Device Manager.
Check if the adapter plug is damaged (replace it for testing).
Red means the camera cannot be started or has stopped working (firmware reflash may be required). Orange means normal operation.
Check if the camera has an SD card (max. 32GB, read/write speed > 10MB/s) or USB drive inserted.
The monitor's resolution or refresh rate is not supported. Change or adjust the resolution to 1920*1080P.
First, restore the camera to factory settings. If the issue persists, adjust the color parameters.
Check if the battery (CR2025) is installed. The remote control only works in HDMI output mode.
Re-plug the USB drive multiple times and ensure it is fully inserted into the port.
UVC protocol (Microsoft's universal video class protocol).
