XVH2003 1080P HDMI VGA Industrial Microscope Camera for PCB Inspection, Soldering and Electronics Repair

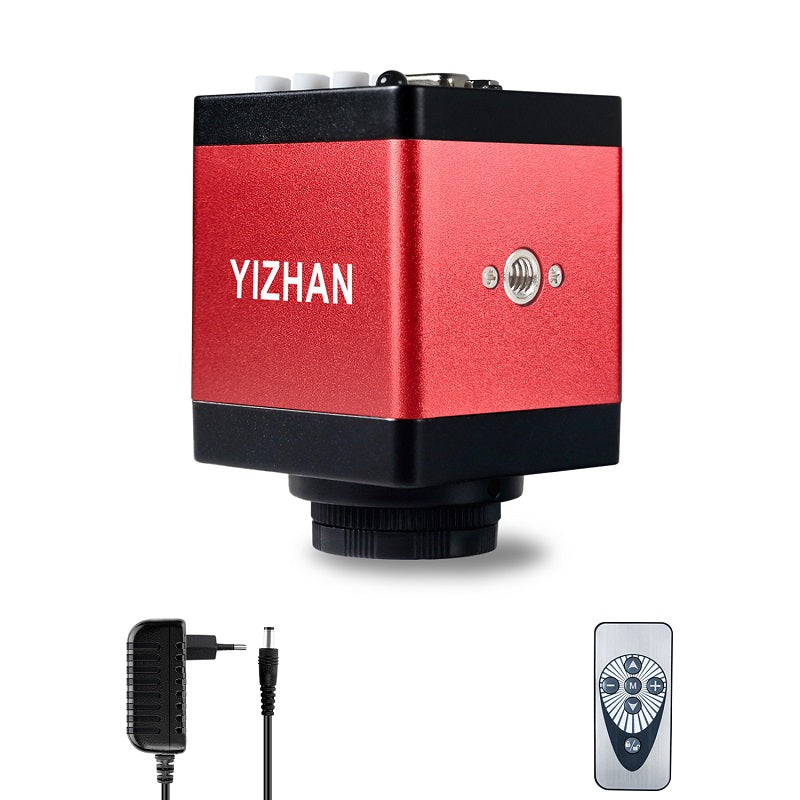

XVH2003 Industrial Electronic Microscope CCD Camera
Product Overview
The XVH2003 Industrial Electronic Microscope CCD Camera is designed for industrial inspection, electronic repair, precision measurement, laboratory analysis, and educational applications. Featuring a 1/2.8-inch back-illuminated CMOS image sensor, it delivers sharp Full HD images with accurate color reproduction and smooth 30fps output via HDMI and VGA.

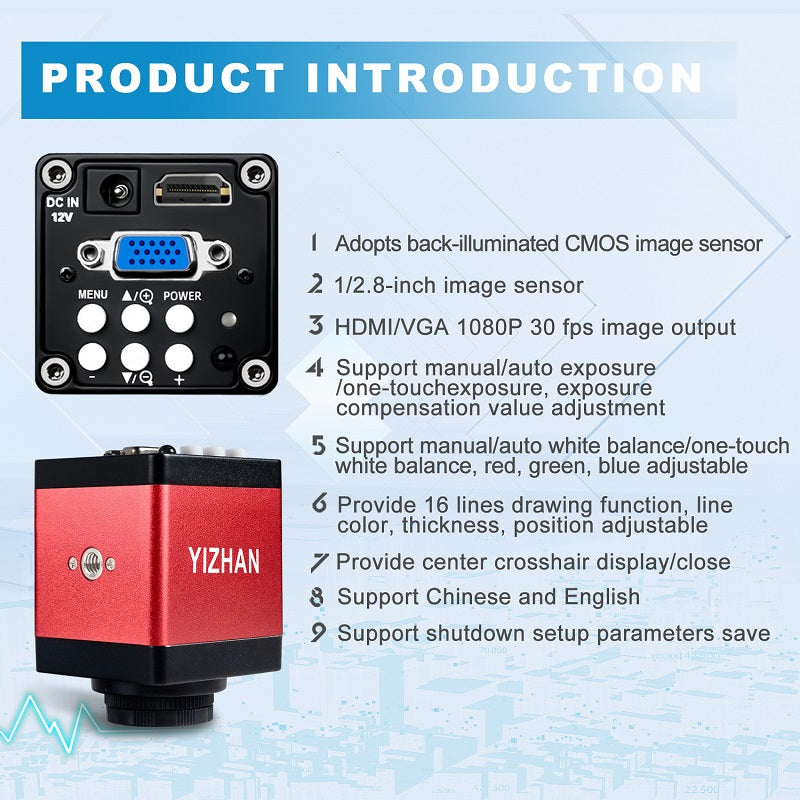

Key Features
-
High-Performance CMOS Sensor

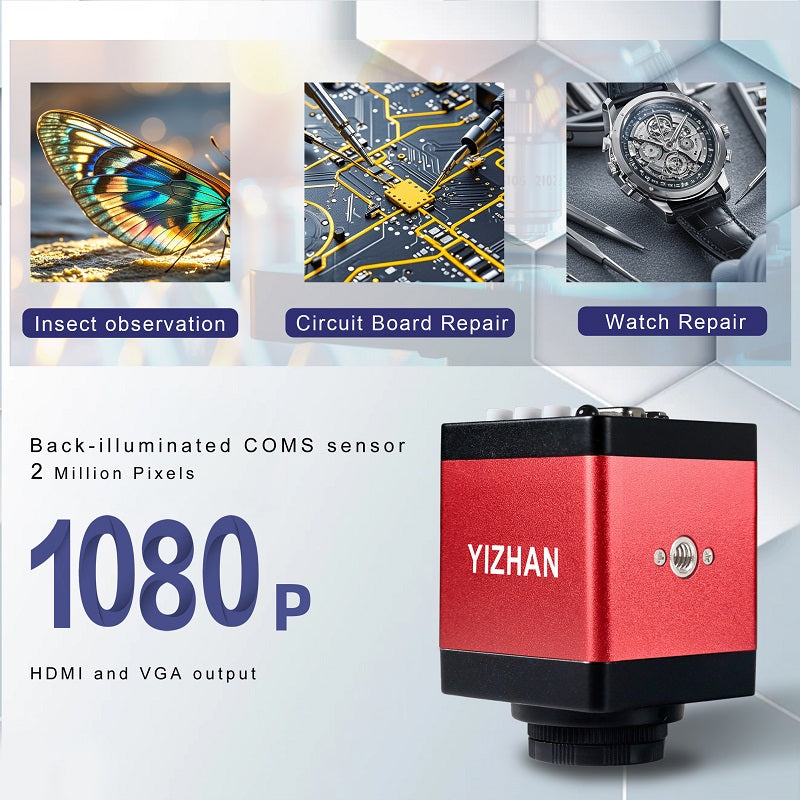

- Equipped with a 1/2.8-inch back-illuminated CMOS image sensor for improved light sensitivity and image clarity.
-
Full HD Image Output
- Supports 1920 × 1080 (1080P) @ 30fps real-time image output.

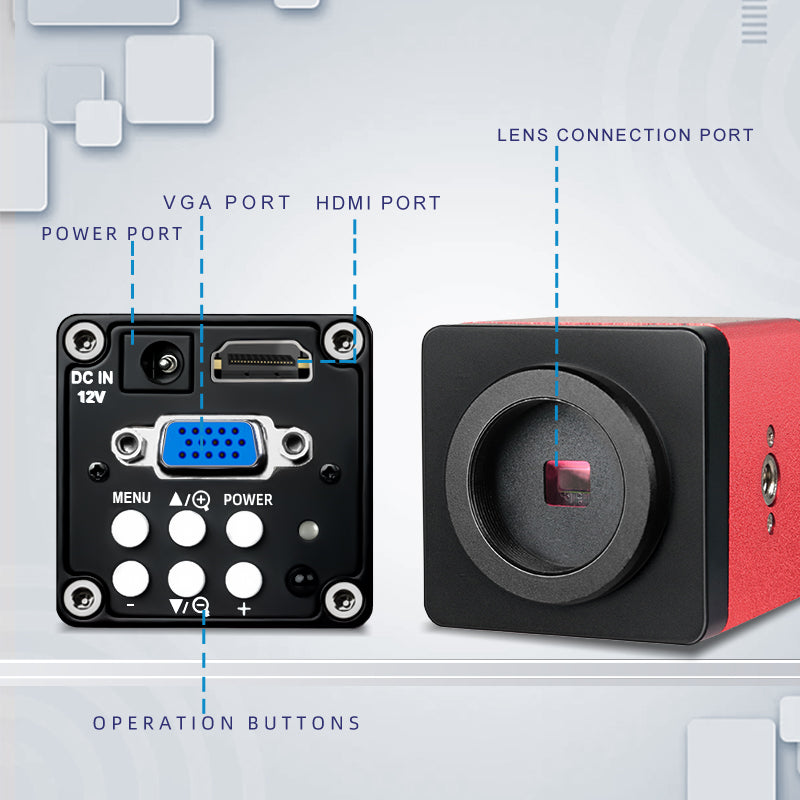

- HDMI and VGA dual-output interfaces for flexible display options.
-
Flexible Exposure Control
- Manual exposure mode.
- Automatic exposure mode.
- One-touch automatic exposure.
- Adjustable exposure compensation.
-
Advanced White Balance
- Manual white balance.
- Automatic white balance.
- One-touch white balance.
- Independent RGB (Red, Green, Blue) adjustment.
-
Built-in Measurement Guide Lines
- Supports 16 adjustable guide lines.
- Line color, thickness, and position can be customized.
-
Center Crosshair Display
- Built-in center crosshair for precise positioning.
- Crosshair can be enabled or disabled as needed.
-
Multilingual Interface
- Supports English and Chinese operating languages.
-
Power-Off Memory
- Automatically saves all user settings after shutdown, eliminating the need for repeated configuration.
Applications
- PCB Inspection
- Electronic Component Repair
- Soldering & Rework
- Precision Manufacturing
- Industrial Quality Control
- Laboratory Research
- Jewelry Inspection
- Educational Demonstration
Specifications
| Model | XVH2003 |
|---|---|
| Image Sensor | 1/2.8-inch Back-Illuminated CMOS |
| Resolution | Full HD 1920 × 1080 |
| Frame Rate | 30 fps |
| Video Output | HDMI / VGA |
| Exposure Control | Manual / Auto / One-touch Auto |
| White Balance | Manual / Auto / One-touch / RGB Adjustment |
| Guide Lines | 16 Adjustable Lines |
| Crosshair | Center Crosshair On/Off |
| Language | English / Chinese |
| Parameter Memory | Supports Power-Off Memory |
The required software has not been sent/installed.
Test with multiple software. Check if the camera appears in the computer's Device Manager.
Check if the adapter plug is damaged (replace it for testing).
Red means the camera cannot be started or has stopped working (firmware reflash may be required). Orange means normal operation.
Check if the camera has an SD card (max. 32GB, read/write speed > 10MB/s) or USB drive inserted.
The monitor's resolution or refresh rate is not supported. Change or adjust the resolution to 1920*1080P.
First, restore the camera to factory settings. If the issue persists, adjust the color parameters.

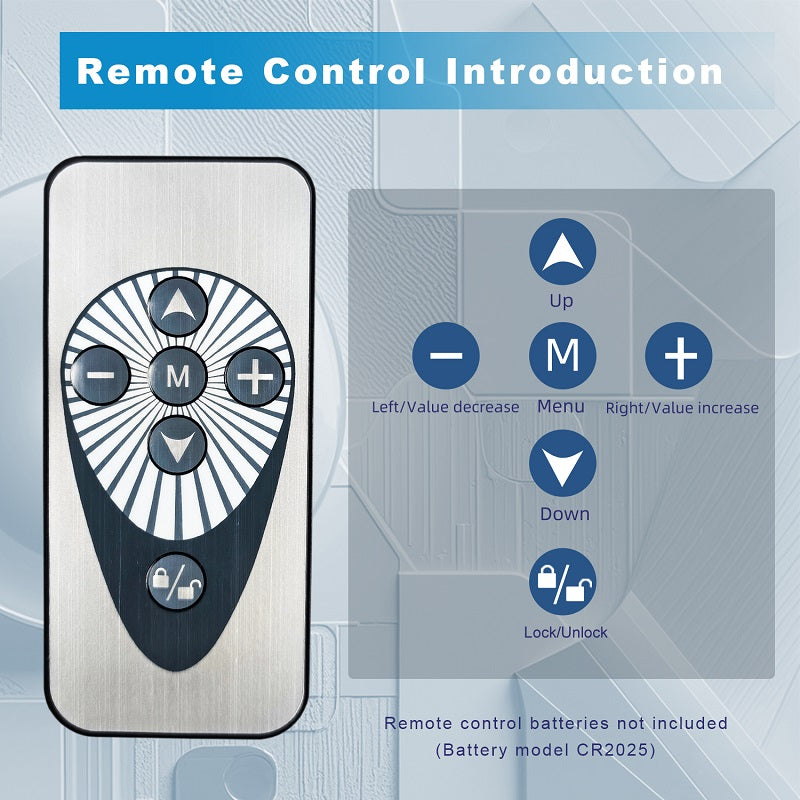

Check if the battery (CR2025) is installed. The remote control only works in HDMI output mode.
Re-plug the USB drive multiple times and ensure it is fully inserted into the port.
UVC protocol (Microsoft's universal video class protocol).
