XHU4006 Digital Microscope Product Description
Product Overview

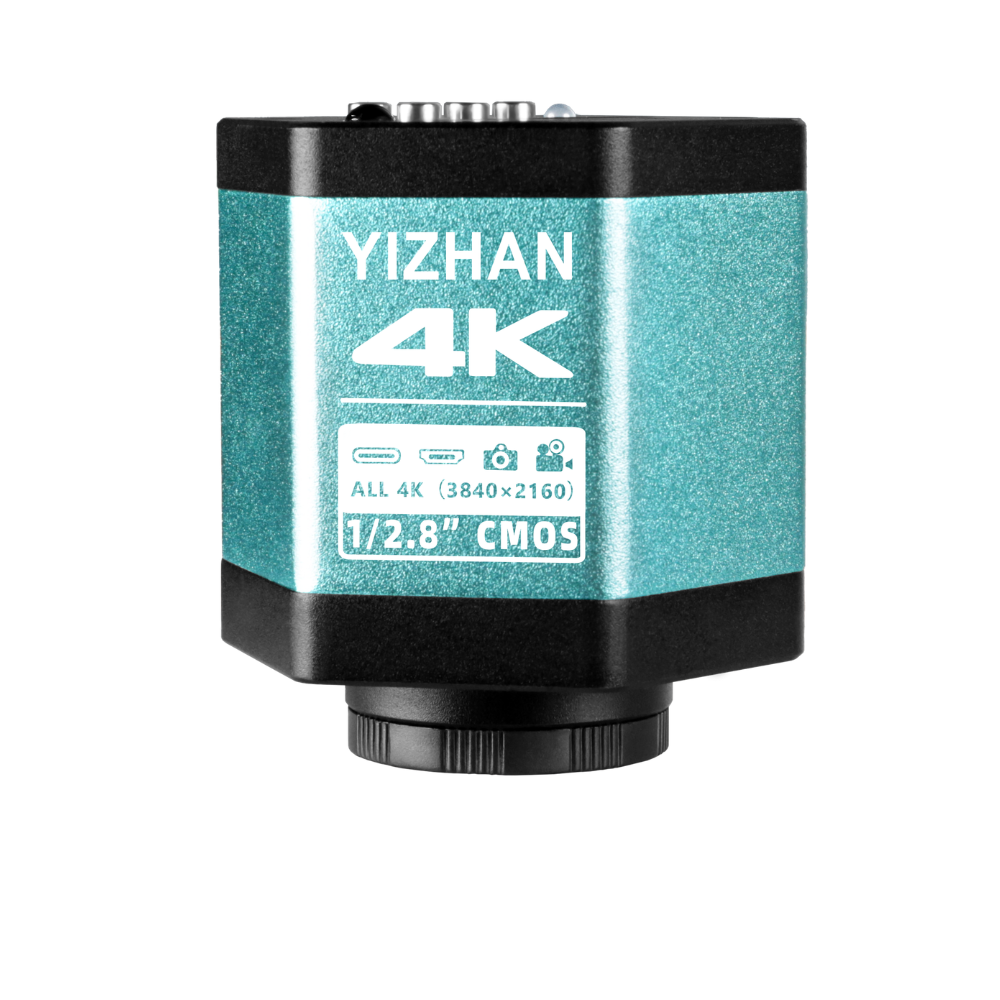

The XHU4006 is a high-performance industrial digital microscope with a Sony CMOS sensor. It supports 4K imaging via HDMI and USB 2.0, built with a sturdy metal body. Ideal for electronics repair, industrial inspection, lab use and teaching.

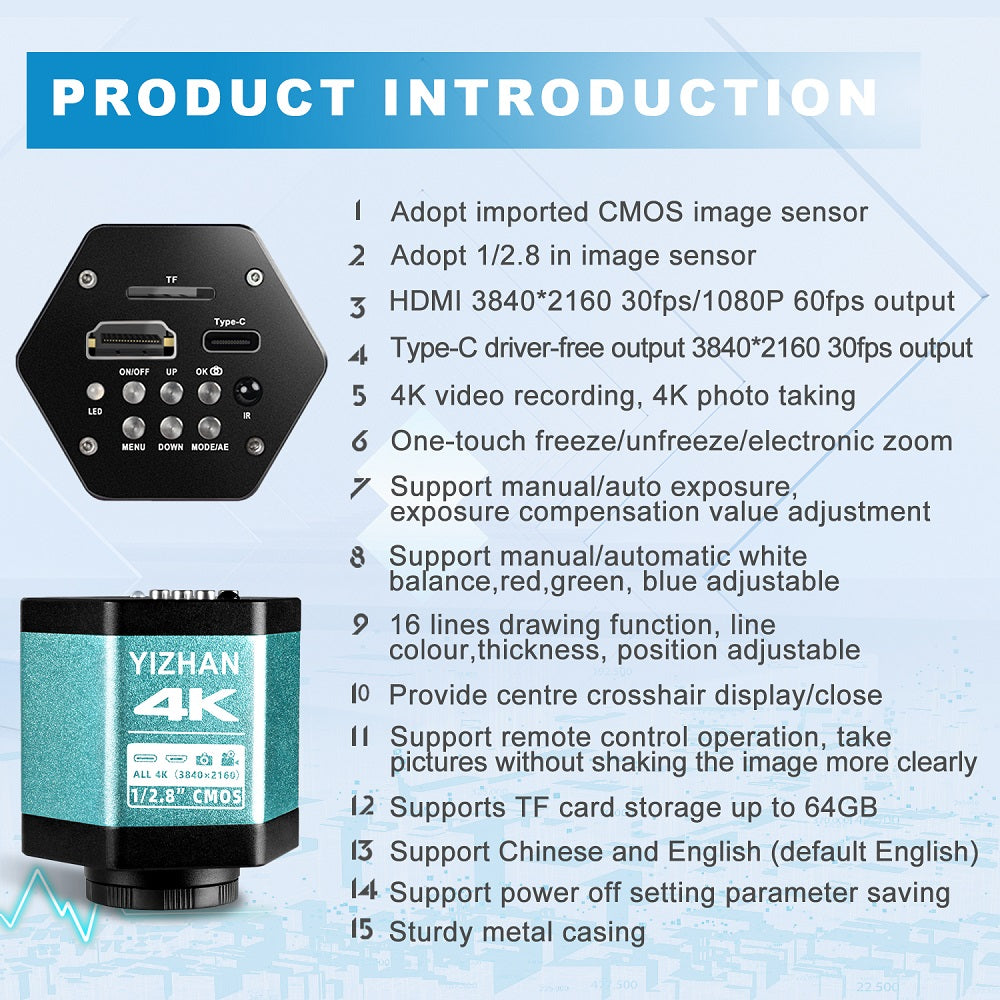

Core Advantages
✅ High-End Imaging Sensor

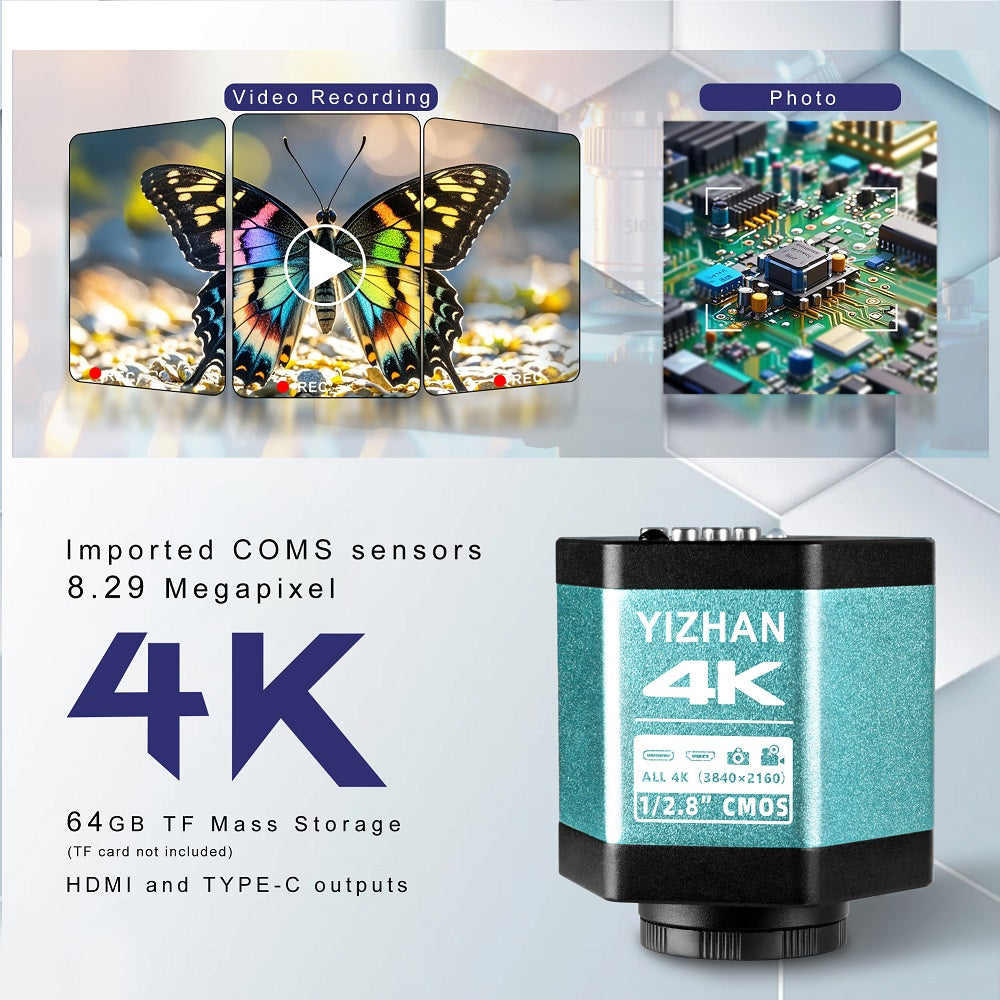

Adopts an 8.29-megapixel Sony CMOS image sensor with a 1/2.8-inch optical format, paired with 1.45µm × 1.45µm pixel size. It captures rich details, restores true colors and ensures sharp, delicate images even under complex lighting conditions.
✅ Dual High-Definition Output Interfaces

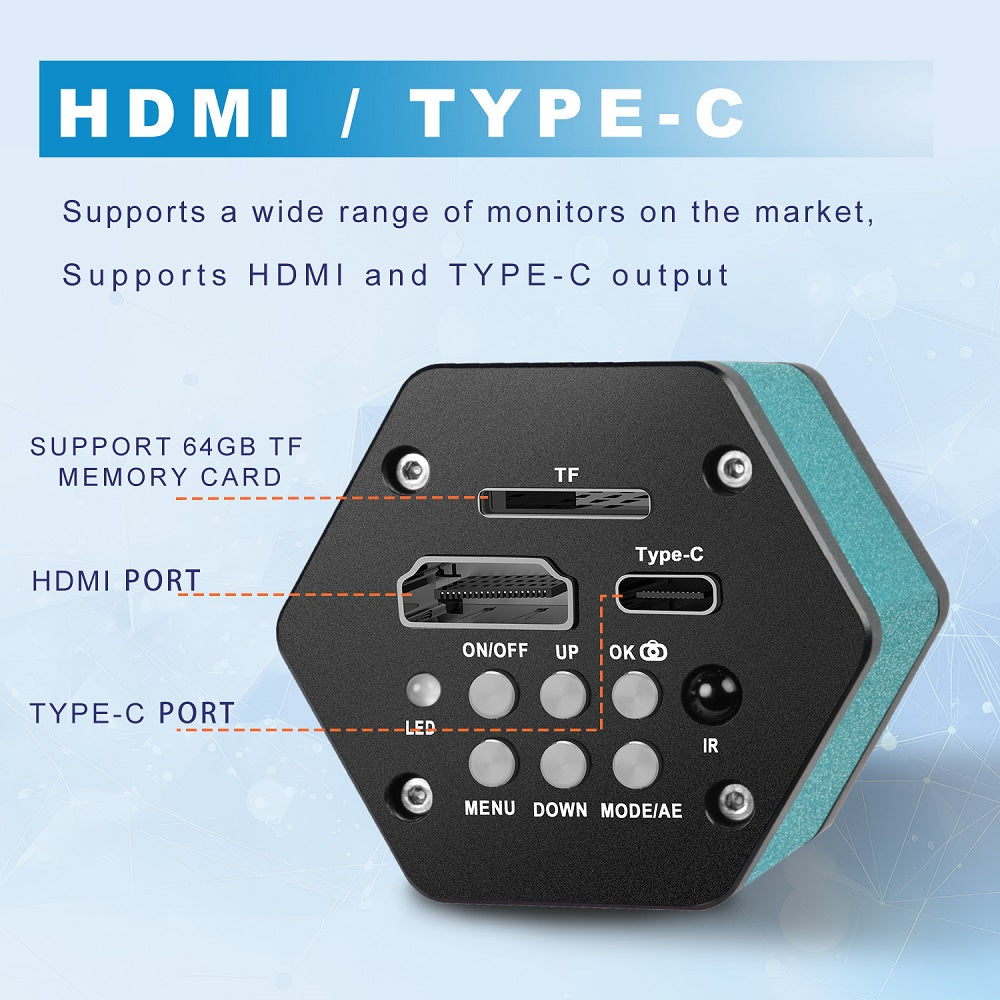

- HDMI output: Supports 3840×2160@30fps 4K resolution and 1920×1080@60fps 1080P high frame rate output for ultra-smooth visual experience.
- USB 2.0 driver-free output: Directly transmits 4K (3840×2160@30fps) and multiple lower-resolution images to computers, enabling plug-and-play without extra driver installation.
✅ 4K Recording & Shooting Functions
Built to support 4K video recording and 4K image capture, perfectly preserving high-resolution samples and recording the whole working process for later review, analysis and archiving.
✅ Practical Auxiliary Imaging Functions

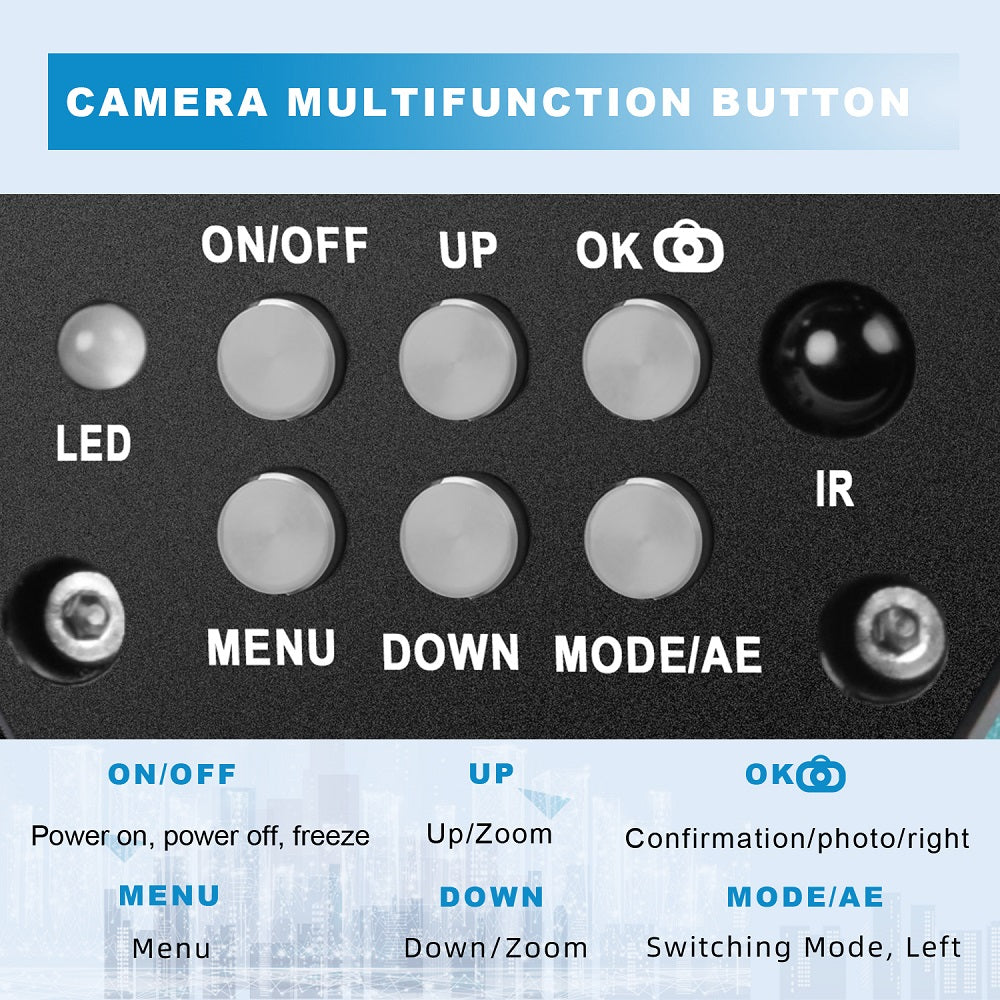

- One-click Freeze/Unfreeze: Instantly freeze frames to observe static details of tiny components and avoid missing key information.
- Electronic Zoom: Flexible digital zoom for magnifying local areas to view micro structures clearly.
- Exposure Control: Compatible with automatic and manual exposure modes, plus adjustable exposure compensation to adapt to bright, dim and variable light environments.
- White Balance Adjustment: Supports automatic and manual white balance, with independent RGB color tuning to restore accurate object colors.
✅ Professional Auxiliary Marking Tools
Comes with 16 adjustable lines; users can freely modify the color, thickness and position of lines. The center crosshair can be toggled on or off, which greatly assists in alignment, measurement and position calibration during precision operations such as soldering and part inspection.
✅ Convenient Storage & Remote Control
- TF card storage: Maximum support for 64GB TF card, allowing on-site image and video storage without connecting to a computer.

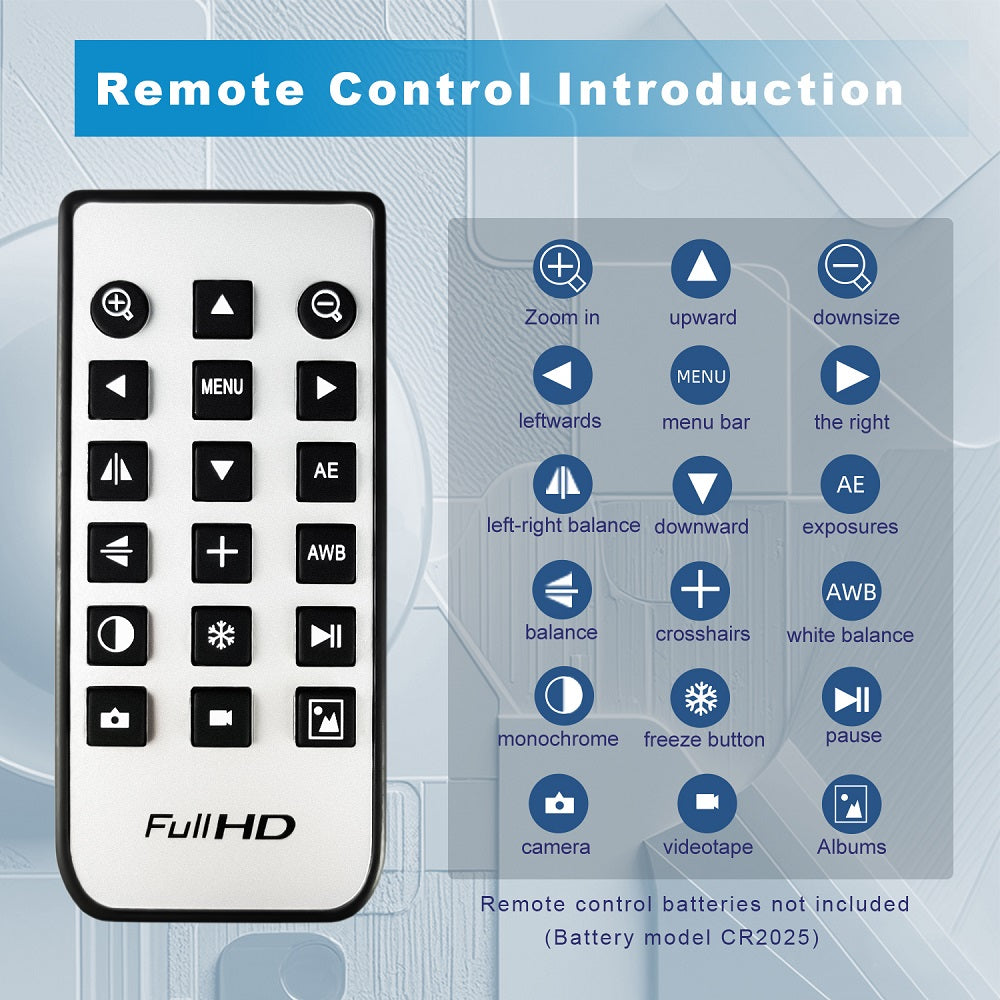

- Remote control operation: Take photos and switch functions via remote control to prevent image blurring caused by manual shaking and ensure stable shooting results.
✅ Humanized System & Durable Structure
- Multilingual menu: Built-in English, Simplified Chinese and Traditional Chinese (English as default) to serve global users.
- Parameter memory: Automatically saves all settings after power-off, no need to reconfigure parameters after restarting.
- Sturdy metal housing: Solid structure, anti-drop and wear-resistant, suitable for long-term use in industrial workshops and complex working scenarios.
Full Technical Specifications
| Item | Parameter |
|---|---|
| Image Sensor | 1/2.9 inch 8.29MP Sony CMOS Sensor |
| Pixel Size | 1.45µm × 1.45µm |
| HDMI Output | 3840*2160@30fps / 1920*1080@60fps |
| USB 2.0 Output (MJPG) | 3840*2160, 2560*1440, 1920*1080, 1280*720, 640*480, 424*240, 320*240 |

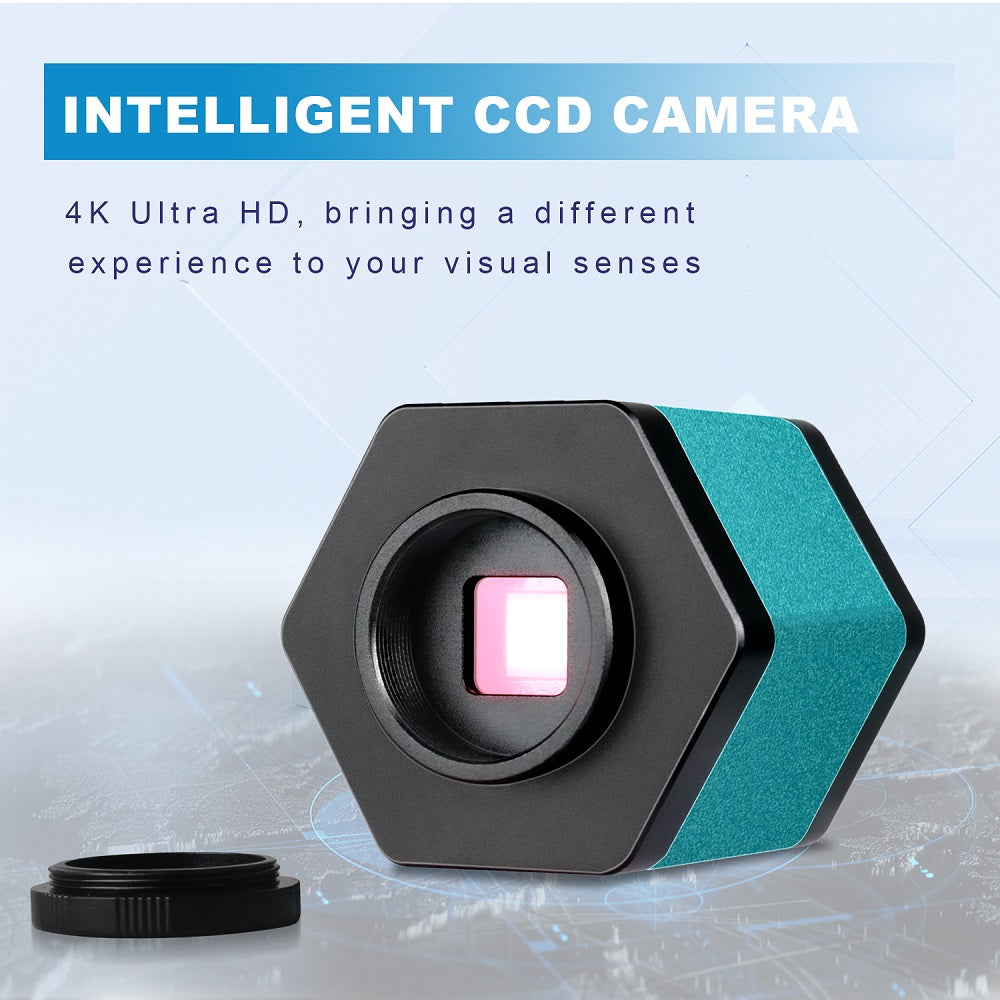

| Lens Interface | C / CS Mount |
| Exposure Mode | Auto / Manual |
| Exposure Compensation | Supported |
| White Balance | Auto / Manual (RGB adjustable) |
| Storage Support | Up to 64GB TF Card |
| Input Voltage | DC 5V |
| Auxiliary Lines | 16 adjustable straight lines (color, thickness and position configurable) |
| Center Crosshair | On / Off switchable |
| Menu Language | English, Simplified Chinese, Traditional Chinese |
| Remote Control | Supported |
| Net Weight | 120g |
| Gross Weight | 400g |
| Product Dimension | 48*48*60mm |
| Package Dimension | 145*130*70mm |
Application Scenarios
- Electronics maintenance & soldering work
- Industrial product quality inspection & defect detection
- Laboratory research and specimen observation
- School teaching and science popularization demonstration
- Jewelry appraisal, antique identification and DIY fine craftsmanship
- Precision parts processing and microscopic observation
Read More
Shipping + Returns
At YIZHAN Microscope, we proudly offer FREE worldwide shipping on all orders.
If express delivery services are available in your country or region, we can ship directly to you.
Fast Global Shipping
* Worldwide delivery available
* Most orders are shipped via air express shipping
* Carefully packed for safe international transportation
* Processing time: 1–3 business days
Order Tracking
Once your order has been shipped, you will receive a tracking number by email.
You can also track your shipment anytime through the tracking page on our homepage.
30-Day Return & Replacement Policy
We offer a 30-day return or replacement guarantee for quality-related issues.
If your product arrives damaged, defective, or experiences any quality problems within 30 days after delivery, please contact our support team for assistance.
We are committed to providing reliable products and professional customer service worldwide.
The required software has not been sent/installed.
Test with multiple software. Check if the camera appears in the computer's Device Manager.
Check if the adapter plug is damaged (replace it for testing).
Red means the camera cannot be started or has stopped working (firmware reflash may be required). Orange means normal operation.
Check if the camera has an SD card (max. 32GB, read/write speed > 10MB/s) or USB drive inserted.
The monitor's resolution or refresh rate is not supported. Change or adjust the resolution to 1920*1080P.
First, restore the camera to factory settings. If the issue persists, adjust the color parameters.
Check if the battery (CR2025) is installed. The remote control only works in HDMI output mode.
Re-plug the USB drive multiple times and ensure it is fully inserted into the port.
UVC protocol (Microsoft's universal video class protocol).
