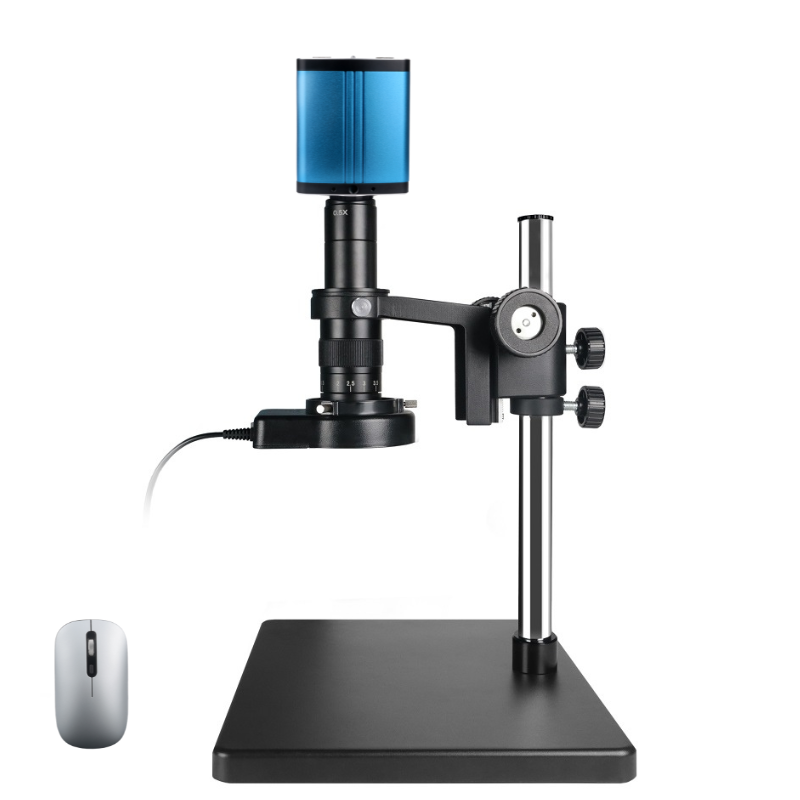

180X Auto Zoom Digital Microscope with Large Base Stand, Industrial Inspection Microscope Camera
180X Auto Zoom Digital Microscope with Large Base Stand, HDMI Industrial Camera and Adjustable LED Light
The YIZHAN 180X Auto Zoom Digital Microscope System is a professional industrial inspection solution designed for precision observation, measurement, and quality control applications. Featuring a 1X-180X zoom lens, auto zoom industrial camera, large inspection base, and adjustable LED illumination, this microscope provides a complete solution for PCB inspection, automotive parts inspection, electronics repair, and industrial surface analysis.
The integrated auto zoom camera enables fast magnification adjustment without manually changing the lens, allowing users to quickly switch between overview inspection and detailed observation. Combined with high-definition imaging, measurement capability, and a stable large working platform, it is ideal for professional inspection environments.
Key Features
1X-180X Magnification with Auto Zoom Camera
The microscope is equipped with a professional zoom lens offering a wide 1X-180X magnification range, allowing users to inspect both large surfaces and microscopic details.
The integrated automatic zoom camera provides:
✔ Automatic magnification adjustment
✔ Faster inspection workflow
✔ Reduced manual operation
✔ Clear imaging at different zoom levels
It is especially suitable for applications requiring repeated inspection and measurement of multiple areas.
High-Definition Auto Zoom Industrial Camera
The microscope system uses a professional industrial camera with automatic zoom functionality, providing clear and stable images for precision inspection.
Camera Features:
- Auto Zoom Function: Automatic magnification adjustment for efficient inspection
- High-resolution imaging: Provides clear details for defect analysis
- HDMI output: Direct connection to HD monitors for real-time viewing
- USB output: Computer connection for image processing and measurement
- Image capture and recording support
- Measurement software compatibility
The camera is suitable for applications requiring:
- Surface defect inspection
- Size measurement
- Image documentation
- Quality control analysis
Camera Specifications
| Item | Specification |
|---|---|
| Sensor | Sony IMX307 CMOS |
| Sensor Size | 1/2.8 inch |
| Pixel Size | 2.9 × 2.9 μm |
| Output Resolution | 1920 × 1080 |
| Frame Rate | HDMI + USB: 1080P@60FPS |
| Video Recording | 1920 × 1080@30FPS |
| Output Interface | HDMI + USB Type-C |
| Image Storage | USB Flash Drive / Computer |
| Exposure Time | 0-999ms |
| Exposure Mode | Auto / Manual with target brightness adjustment |
| White Balance | Auto / Manual / ROI Mode |
| Image Adjustment | Contrast, Saturation, Gamma, Sharpness, Noise Reduction |
| Operating System | Youngwin OS |
| PC Software | S-EYE 2.0 |
| Working Temperature | 0-60℃ |
| Storage Temperature | -20-85℃ |

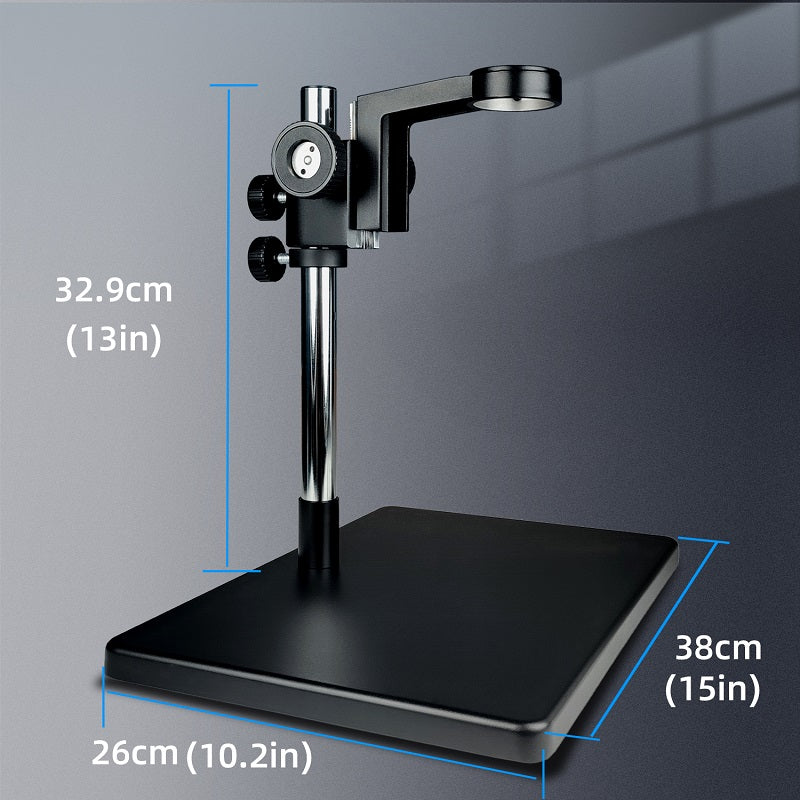

Large Base Stand for Industrial Inspection
The heavy-duty microscope stand provides a large and stable working area for inspecting bigger samples.
Stand Dimensions:
- Base length: 15 inches
- Base width: 10.2 inches
- Stand height: 13 inches
The large platform allows flexible positioning of various workpieces, including:
- Automotive components
- Electronic assemblies
- Mechanical parts
- Industrial products
The stable structure reduces vibration and improves image accuracy during inspection.
Adjustable LED Microscope Illumination
The microscope includes a high-brightness LED ring light with adjustable brightness control.
Benefits:
✔ Uniform illumination
✔ Reduced shadows and reflections
✔ Improved image contrast
✔ Suitable lighting for different materials
Users can adjust brightness according to different inspection requirements, making it suitable for:
- Painted surface inspection
- Metal inspection
- PCB soldering
- Plastic component analysis
Applications
Automotive Paint Surface Inspection
The 180X auto zoom microscope is ideal for inspecting automotive exterior components, including:
- Car skirts
- Spoilers
- Painted plastic parts
It helps identify:
- Dust particles after painting
- Surface spots
- Coating defects
- Small scratches
- Paint damage
The auto zoom function improves inspection efficiency by allowing quick switching between large-area viewing and detailed defect analysis.
PCB Inspection and Electronics Repair
Suitable for:
- PCB quality inspection
- SMD component inspection
- IC pin checking
- Micro soldering
- Electronics repair
The high magnification range and adjustable illumination provide clear visibility of small electronic components.
Industrial Quality Control
Designed for:
- Manufacturing inspection
- Precision measurement
- Product defect analysis
- Laboratory research
- Surface evaluation
Why Choose YIZHAN 180X Auto Zoom Digital Microscope?
✔ 1X-180X optical zoom range
✔ Auto zoom industrial camera for fast adjustment
✔ Sony IMX307 high-sensitivity CMOS sensor
✔ HDMI + USB dual output
✔ 1080P@60FPS real-time imaging
✔ Large 15 × 10.2 inch inspection base
✔ Adjustable LED ring light
✔ Measurement and image storage support
The YIZHAN 180X Auto Zoom Digital Microscope System combines automatic zoom technology, high-definition imaging, stable mechanical support, and professional illumination to provide an advanced inspection solution for automotive, electronics, and industrial applications.
Use overlay text to give your customers insight into your brand. Select image and text that relates to your style and story.
The required software has not been sent/installed.
Test with multiple software. Check if the camera appears in the computer's Device Manager.
Check if the adapter plug is damaged (replace it for testing).
Red means the camera cannot be started or has stopped working (firmware reflash may be required). Orange means normal operation.
Check if the camera has an SD card (max. 32GB, read/write speed > 10MB/s) or USB drive inserted.
The monitor's resolution or refresh rate is not supported. Change or adjust the resolution to 1920*1080P.
First, restore the camera to factory settings. If the issue persists, adjust the color parameters.
Check if the battery (CR2025) is installed. The remote control only works in HDMI output mode.
Re-plug the USB drive multiple times and ensure it is fully inserted into the port.
UVC protocol (Microsoft's universal video class protocol).
