YIZHAN 180X 4K Digital Microscope with Sony 8.29MP CMOS Camera, HDMI Type-C Output & Large Stand

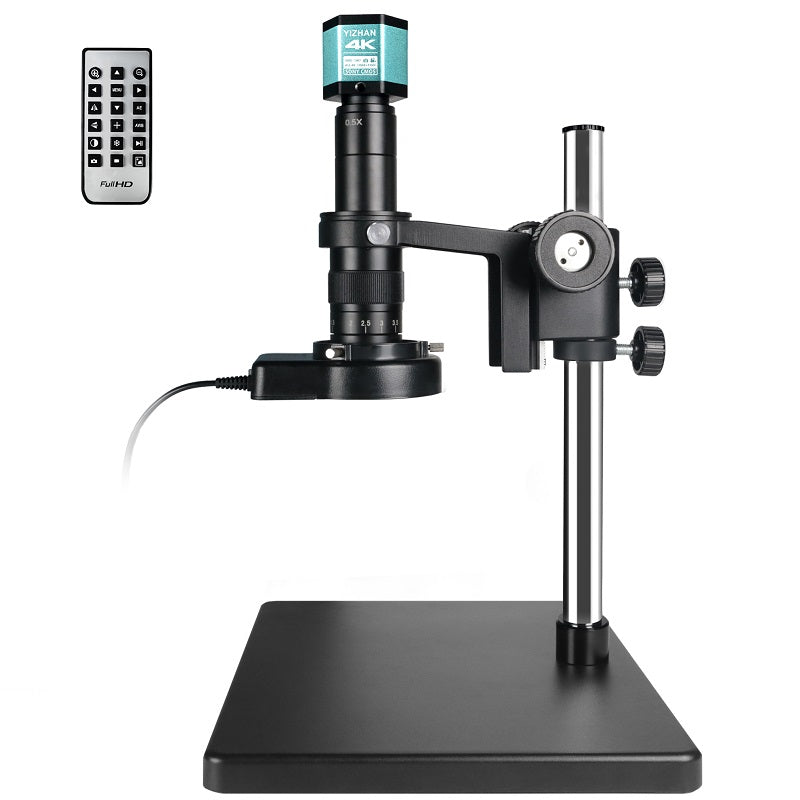

YIZHAN 180X 4K Digital Microscope Kit
Product Overview
The YIZHAN XHU4006 180X 4K Digital Microscope Kit is a professional inspection solution designed for PCB inspection, electronics repair, soldering, industrial quality control, and precision observation.
The complete kit includes a 1-180X continuous zoom C-Mount microscope lens, XHU4006 4K digital microscope camera, height-adjustable large base stand, and 56-LED adjustable ring light. With a high-performance Sony 8.29MP CMOS image sensor, 4K video output, HDMI and Type-C connectivity, this microscope delivers clear, detailed images for professional applications.

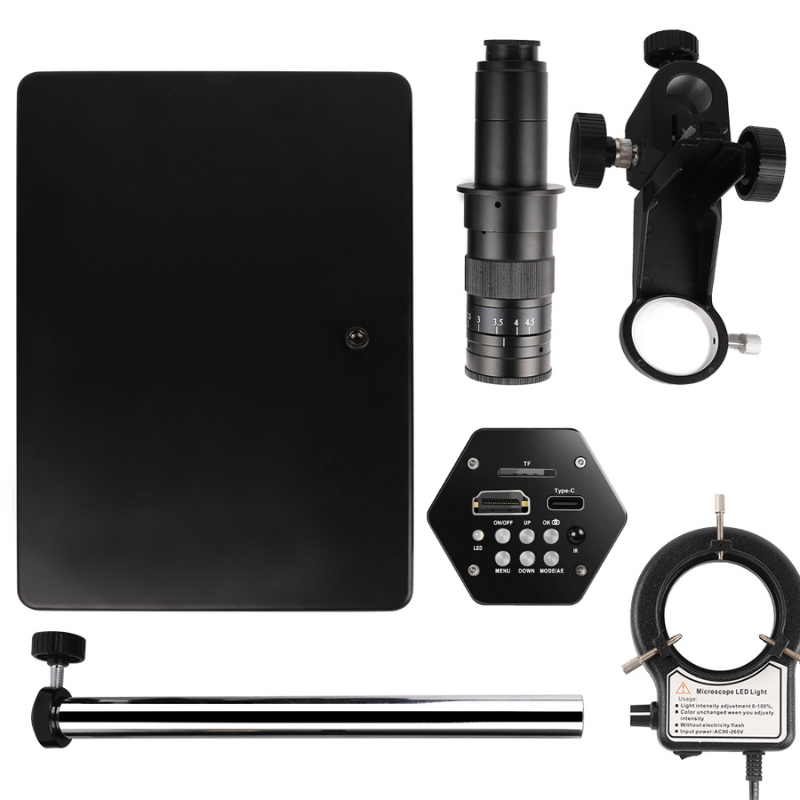

Package Includes
- 1 × XHU4006 4K Digital Microscope Camera
- 1 × 1-180X C-Mount Zoom Microscope Lens
- 1 × Large Adjustable Height Base Stand
- 1 × 56-LED Adjustable Ring Light
- Accessories and mounting components

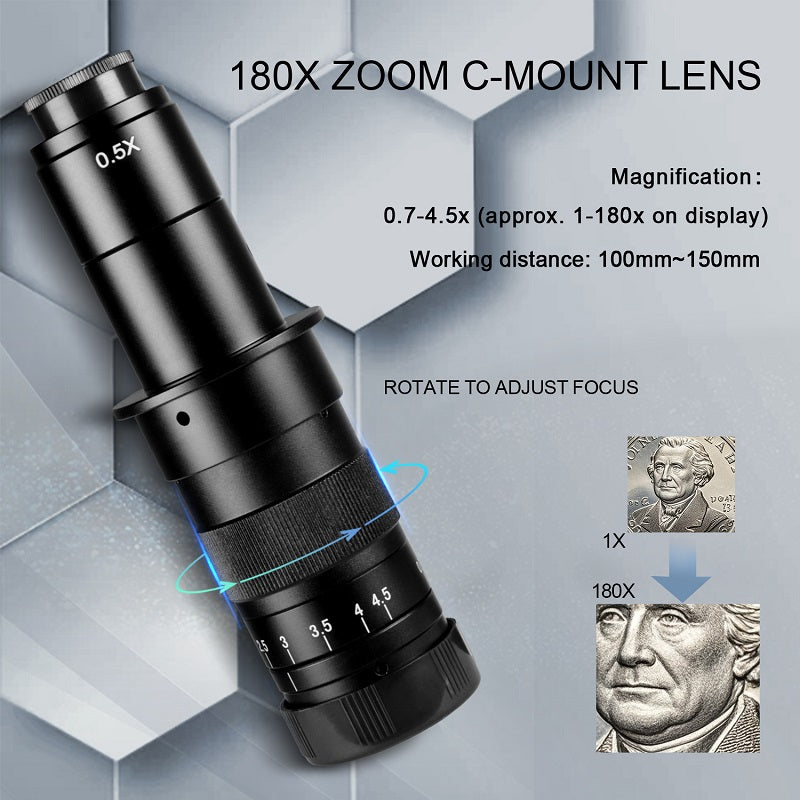

1-180X Continuous Zoom C-Mount Microscope Lens
The included industrial zoom lens provides flexible magnification from 0.7X to 4.5X optical zoom, achieving approximately 1X-180X display magnification depending on the monitor size and camera settings.
Lens Specifications
- Mount Interface: Standard C-Mount
- Magnification Range: Approx. 1X-180X (on display)
- Optical Zoom Range: 0.7X-4.5X
- Working Distance: 100mm-150mm
- Lens Diameter: 50mm / 2 inches
- Lens Length: 175mm / 6.9 inches
- Adjustable Focus: Yes
- Application: PCB inspection, soldering, electronics repair, industrial inspection
The standard C-Mount interface allows compatibility with different microscope cameras and imaging systems.

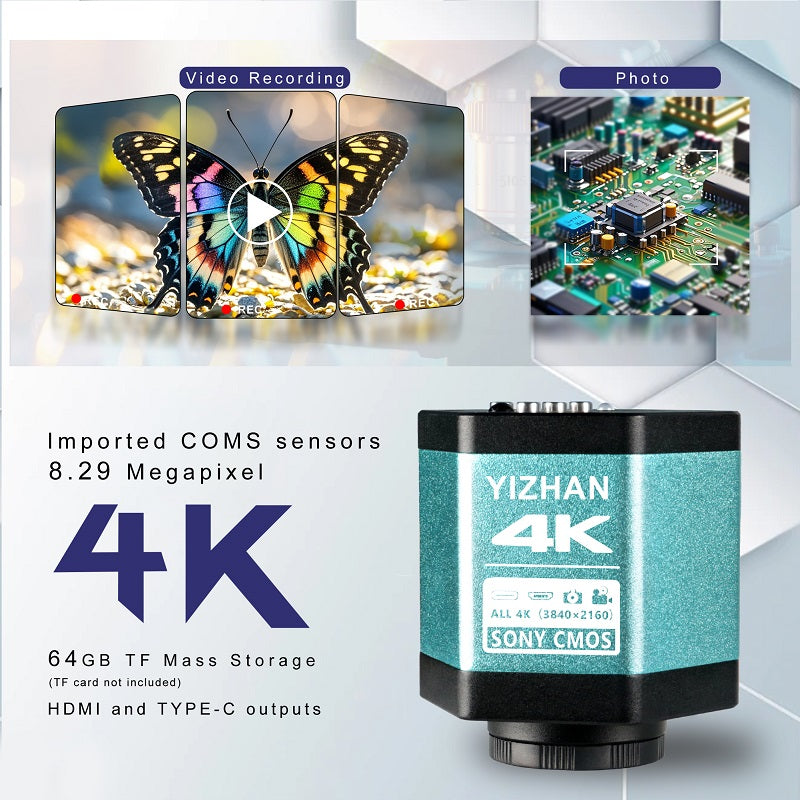

XHU4006 4K Digital Microscope Camera
The XHU4006 camera features an imported Sony 8.29MP CMOS image sensor and professional imaging processing technology, providing high-resolution images with excellent color reproduction and detail.
High-Resolution Imaging
- Image Sensor: Sony 8.29MP CMOS Sensor
- Sensor Size: 1/2.8 inch
- 4K Video Output: HDMI 3840 × 2160 @ 30FPS
- Full HD Output: 1080P @ 60FPS
- 4K Video Recording Support
- 4K Photo Capture Support
HDMI & Type-C Dual Output
The camera supports multiple output methods for convenient viewing and recording:
HDMI Output
- Direct connection to monitor, TV, or display
- Supports:
- 3840 × 2160 4K @ 30FPS
- 1080P @ 60FPS
Type-C Output
- Driver-free connection to computer
- Supports:
- 3840 × 2160 4K @ 30FPS
No additional driver installation is required, making setup quick and simple.
Professional Camera Functions
Image Control Features
- One-click image freeze / unfreeze function
- Electronic zoom function
- Manual and automatic exposure adjustment
- Exposure compensation adjustment
- Manual and automatic white balance
- RGB color adjustment (Red / Green / Blue)
Measurement & Display Functions
- 16 adjustable guide lines
- Line color adjustment
- Line thickness adjustment
- Position adjustment
- Center crosshair display ON/OFF
- Supports TF card storage
- Maximum TF card capacity: 64GB
User-Friendly Operation
- Wireless remote control included
- Remote photo capture reduces vibration and improves image clarity
- Supports English and Chinese menu languages
- Parameter settings can be saved after shutdown
Durable Design
- Strong metal housing
- Designed for long-term professional use

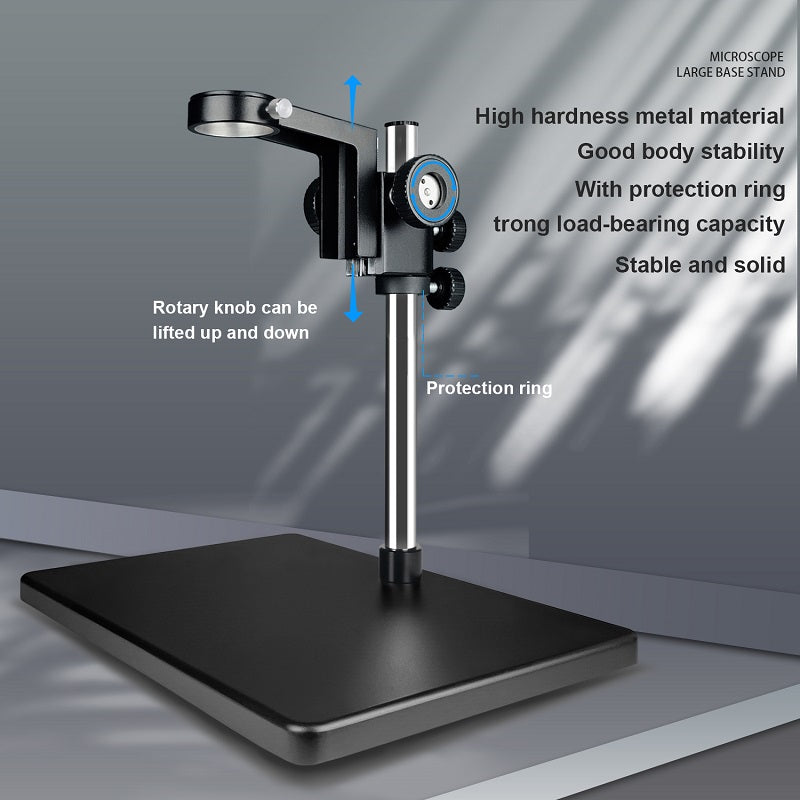

Large Adjustable Height Base Stand
The included heavy-duty stand provides a stable platform for precision inspection and flexible adjustment.
Stand Specifications
- Base Width: 260mm / 10.2 inches
- Base Length: 380mm / 15 inches
- Stand Height: 360mm / 14.1 inches
- Adjustable Working Height: Yes
The large working area allows users to inspect larger PCBs, mechanical parts, electronic components, and industrial samples.

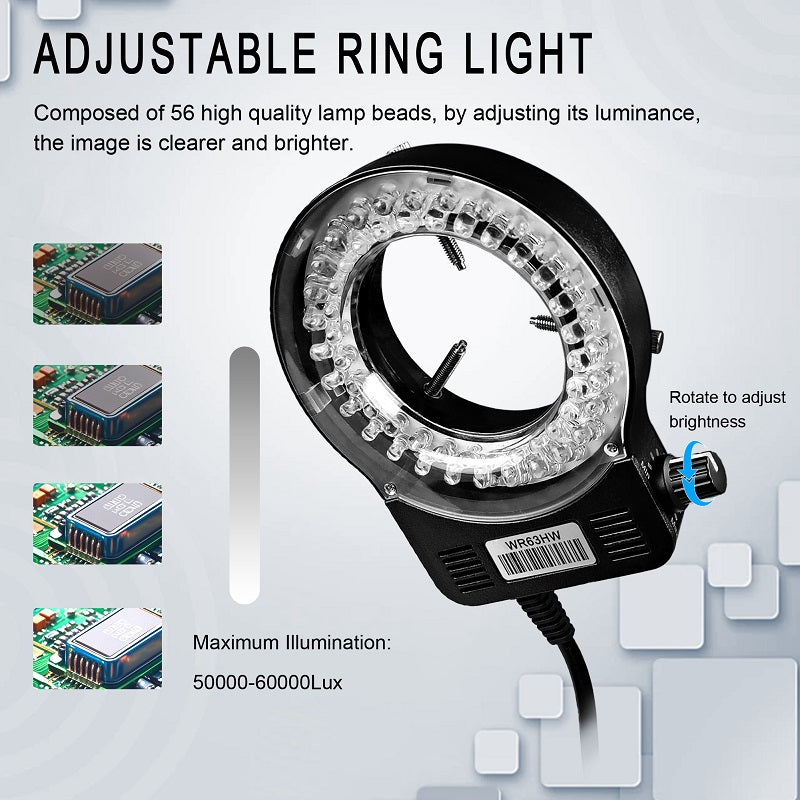

56-LED Adjustable Ring Light
The microscope comes with a high-brightness LED ring light to provide uniform illumination and reduce shadows.
Ring Light Features
- LED Quantity: 56 LEDs
- Brightness Adjustment: Supported
- Uniform Lighting: Reduces glare and shadows
- Adjustable Illumination: Suitable for different inspection environments
Main Applications
The YIZHAN XHU4006 180X 4K Digital Microscope is ideal for:
- PCB inspection
- Electronics repair
- Soldering inspection
- Circuit board quality control
- Mobile phone repair
- Micro-component inspection
- Industrial manufacturing inspection
- Laboratory observation
- Jewelry and precision parts inspection
Why Choose YIZHAN XHU4006?
✅ Sony 8.29MP CMOS sensor for high-quality imaging
✅ 4K HDMI output without delay
✅ Driver-free Type-C computer connection
✅ 1-180X adjustable magnification
✅ Professional C-Mount industrial lens
✅ Large adjustable metal stand
✅ Adjustable 56-LED ring illumination
✅ Suitable for professional electronics and industrial applications
YIZHAN XHU4006 — A professional 4K microscope solution for precision inspection and repair work.
Use overlay text to give your customers insight into your brand. Select image and text that relates to your style and story.
The required software has not been sent/installed.
Test with multiple software. Check if the camera appears in the computer's Device Manager.
Check if the adapter plug is damaged (replace it for testing).
Red means the camera cannot be started or has stopped working (firmware reflash may be required). Orange means normal operation.
Check if the camera has an SD card (max. 32GB, read/write speed > 10MB/s) or USB drive inserted.
The monitor's resolution or refresh rate is not supported. Change or adjust the resolution to 1920*1080P.
First, restore the camera to factory settings. If the issue persists, adjust the color parameters.
Check if the battery (CR2025) is installed. The remote control only works in HDMI output mode.
Re-plug the USB drive multiple times and ensure it is fully inserted into the port.
UVC protocol (Microsoft's universal video class protocol).
