YIZHAN G1600 12MP 9" LCD Digital Microscope | 1–1600X Continuous Zoom | Adjustable Angle
Download English Manual (PDF)
Click the link above to get the full user guide for this product.

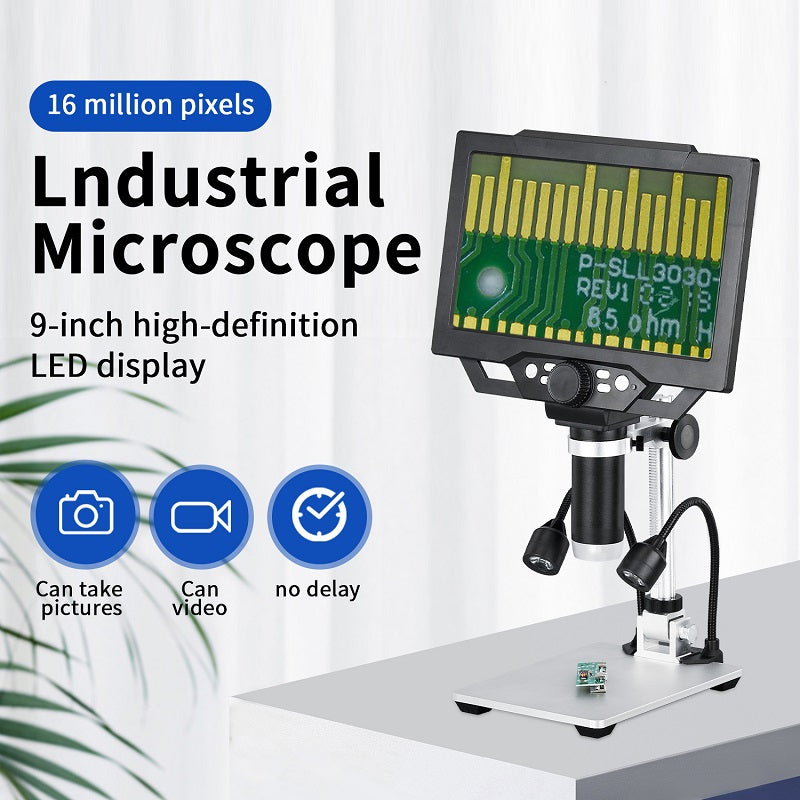

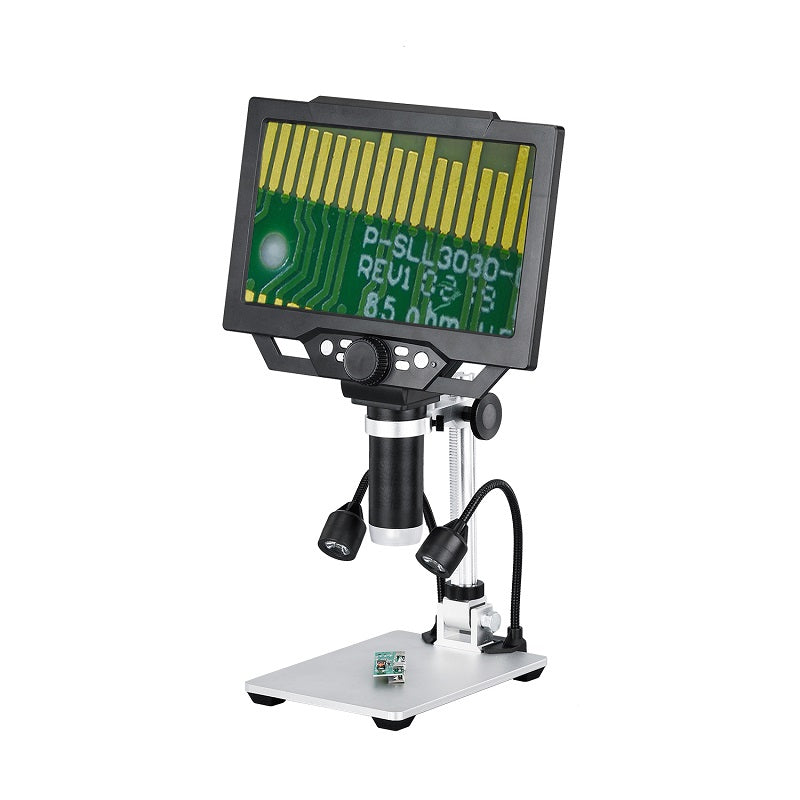

Explore Every Detail with the YIZHAN G1600 Digital Microscope
The YIZHAN G1600 Digital Microscope is designed for electronics repair, PCB soldering, coin inspection, jewelry identification, biological observation, quality control, and precision maintenance.
Unlike traditional vertical microscopes, the G1600 features an adjustable viewing angle, reducing glare from reflective surfaces while providing a comfortable working distance for soldering irons, tweezers, and other repair tools.
With a 12MP HD sensor, 9-inch LCD display, and 1–1600X continuous magnification, you can inspect even the smallest electronic components with exceptional clarity.
Why Choose the YIZHAN G1600?

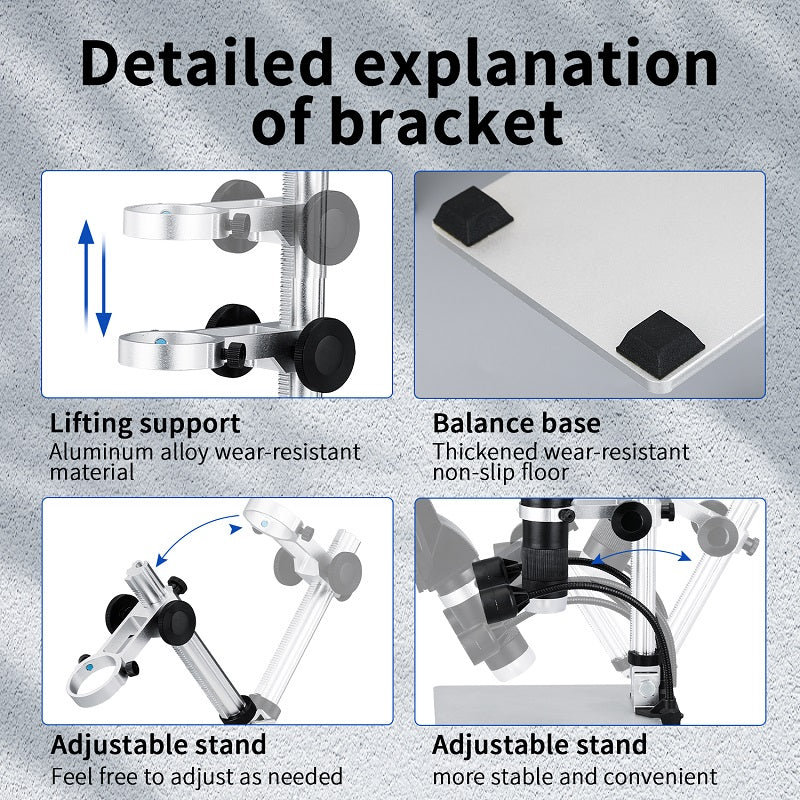

Adjustable Viewing Angle – Designed for Electronics Repair
Most vertical microscopes suffer from reflections when inspecting:
- PCB circuit boards
- IC chips
- Solder joints
- Metal surfaces
- Electronic components
The G1600 solves this problem with its adjustable-angle design, allowing you to position the camera for the best viewing angle and significantly reduce glare.
The longer working distance also provides more room for:
- Soldering irons
- Tweezers
- Hot air rework stations
- Precision repair tools
Perfect for electronics technicians and repair professionals.
Smooth 1–1600X Continuous Zoom
Many digital microscopes only offer fixed magnification levels.
The G1600 features a continuous zoom system, allowing you to smoothly adjust magnification anywhere from 1X to 1600X.
Benefits include:
- Wider viewing flexibility
- Easier focusing
- Better inspection efficiency
- No sudden jump between magnification levels
9-Inch HD LCD Display

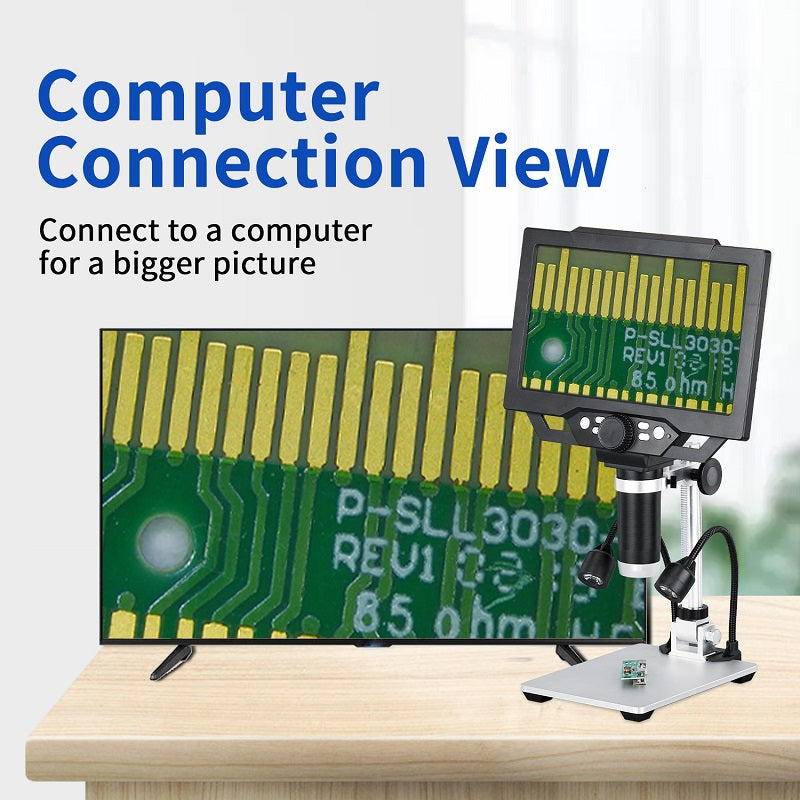

The large 9-inch LCD screen lets you inspect objects comfortably without connecting to an external monitor.
Ideal for:
- Long repair sessions
- Education
- Demonstrations
- Group viewing
12MP High-Definition Imaging
Capture crisp images and videos with the built-in 12MP image sensor.
Suitable for:
- PCB documentation
- Quality inspection
- Jewelry photography
- Coin collection
- Biological observation
Product Specifications
| Specification | Details |
|---|---|
| Model | G1600 |
| Image Sensor | 12MP HD |
| Display | 9-inch LCD |
| Magnification | 1–1600X Continuous Zoom |

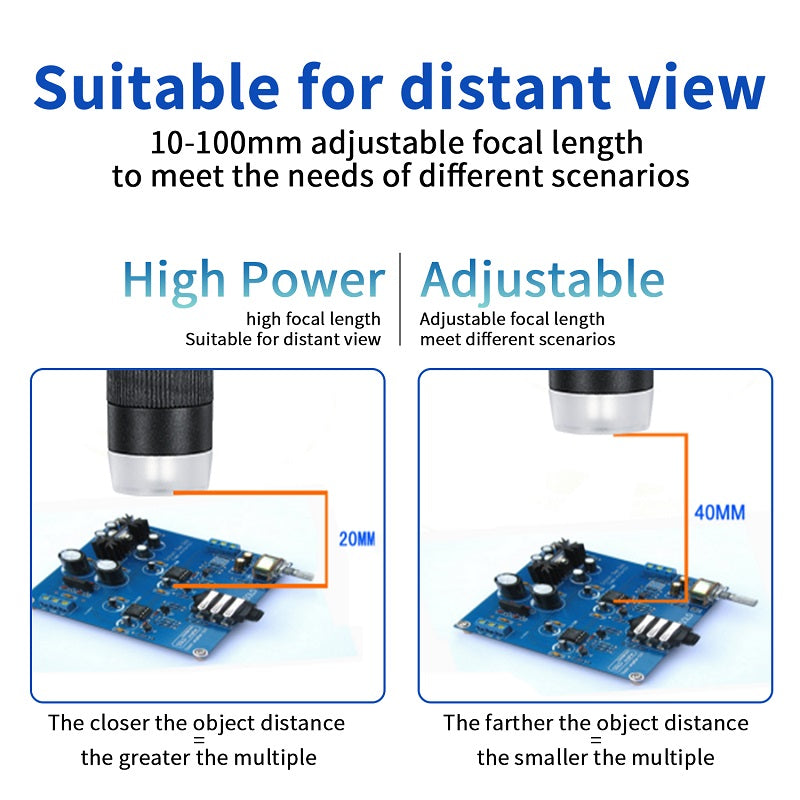

| Working Distance | 10 mm to Infinity |
| LED Lights | 8 High-Brightness Adjustable LEDs |
| Power Supply | DC Power Adapter or Built-in Rechargeable Lithium Battery |
| Storage | Memory Card Slot |
| Language Support | 16 Languages |
16 Language Support
The G1600 supports multiple languages, making it suitable for users worldwide.
Available languages include:
- English
- Spanish
- Russian
- Korean
- Japanese
- Thai
- Hebrew
- Portuguese
- German
- French
- Italian
- Turkish
- Czech
- Polish
- Traditional Chinese
- Simplified Chinese

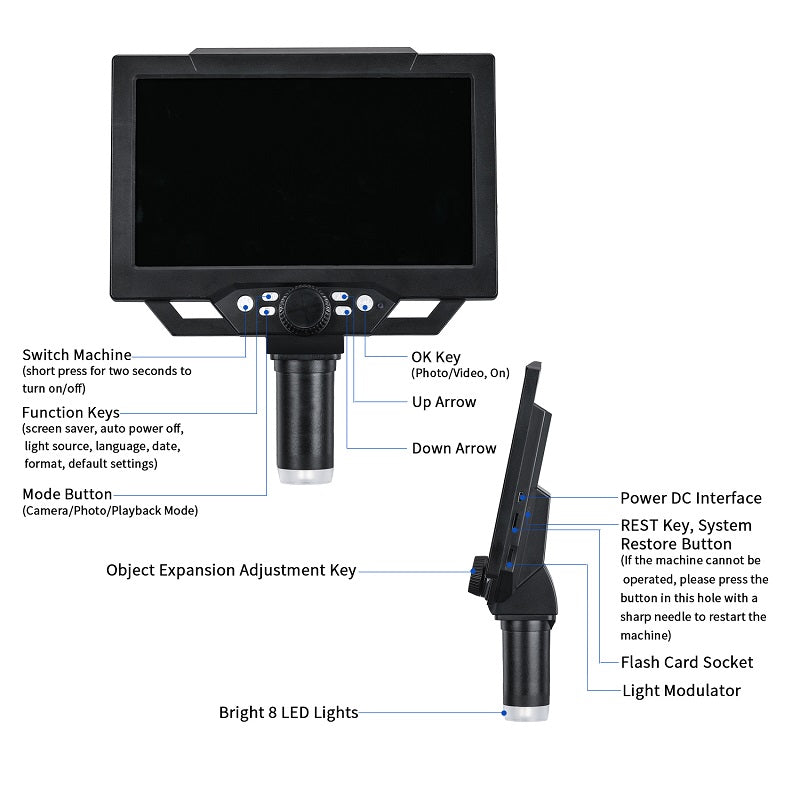

Easy-to-Use Controls
The microscope features intuitive controls for everyday operation.
Power Button
- Press and hold for 2 seconds to power ON/OFF.
Function Button
Quick access to:
- Screen Saver
- Auto Power Off
- LED Light Settings
- Language Selection
- Date & Time
- Format Memory Card
- Restore Factory Settings
Mode Button
Switch between:
- Photo Mode
- Video Recording
- Playback Mode
OK Button
- Capture photos
- Start/Stop video recording
- Confirm menu selections
Navigation Buttons
- Up
- Down
Brightness Control
Adjust the brightness of the 8 built-in LED lights for optimal illumination.
Reset Button
If the microscope becomes unresponsive, simply press the RESET button with a pin to restart the system.
Why Professionals Choose YIZHAN
✔ 12MP High-Definition Imaging
✔ Large 9" LCD Display
✔ 1–1600X Continuous Zoom
✔ Adjustable Viewing Angle
✔ Long Working Distance
✔ 8 Adjustable LED Lights
✔ Built-in Rechargeable Battery
✔ Supports 16 Languages
✔ Ideal for Electronics Repair & Industrial Inspection
Use overlay text to give your customers insight into your brand. Select image and text that relates to your style and story.
The required software has not been sent/installed.
Test with multiple software. Check if the camera appears in the computer's Device Manager.
Check if the adapter plug is damaged (replace it for testing).
Red means the camera cannot be started or has stopped working (firmware reflash may be required). Orange means normal operation.
Check if the camera has an SD card (max. 32GB, read/write speed > 10MB/s) or USB drive inserted.
The monitor's resolution or refresh rate is not supported. Change or adjust the resolution to 1920*1080P.
First, restore the camera to factory settings. If the issue persists, adjust the color parameters.
Check if the battery (CR2025) is installed. The remote control only works in HDMI output mode.
Re-plug the USB drive multiple times and ensure it is fully inserted into the port.
UVC protocol (Microsoft's universal video class protocol).
