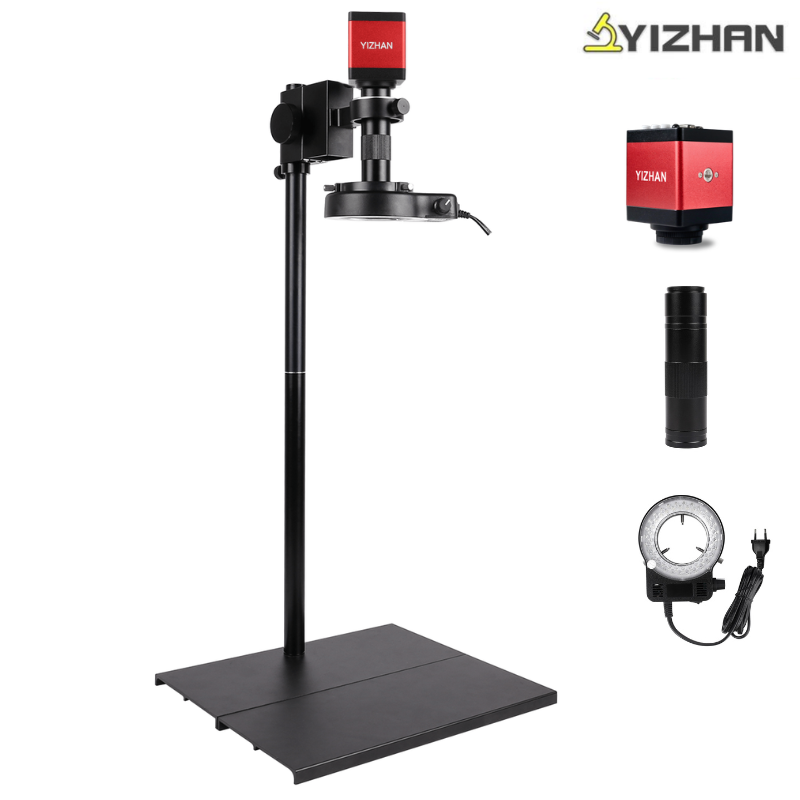

YIZHAN HDMI VGA Digital Microscope 150X C-Mount Lens High-Rise Stand
Digital Microscope 150X C-Mount Lens with High-Rise Adjustable Stand
The YIZHAN HDMI VGA Digital Microscope XVH2003 is a professional industrial inspection microscope designed for PCB soldering, electronic repair, precision assembly, and component inspection. Equipped with a 1X-150X continuous zoom C-Mount lens, high-definition HDMI/VGA camera output, and a stable adjustable high-rise stand, it provides clear imaging and flexible working space for various repair applications.
High-Rise Adjustable Stand for Flexible Working
The microscope features a stable medium-size base and adjustable vertical stand, providing a comfortable working environment for different inspection tasks.

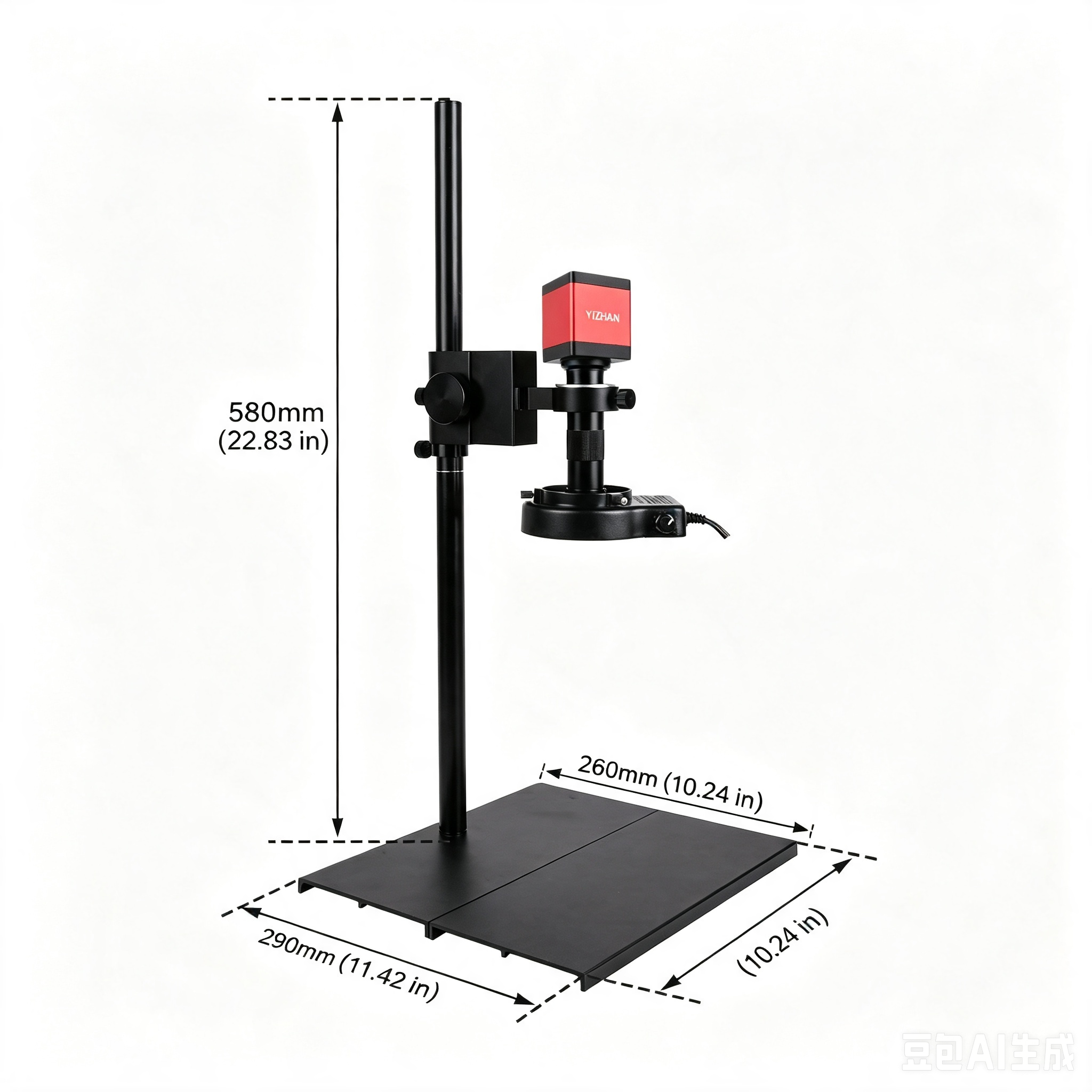

Stand Dimensions:
- Base Width: 290mm (11.42 inches)
- Base Length: 260mm (10.24 inches)
- Maximum Stand Height: 580mm (22.83 inches)
The stand height can be easily adjusted to meet different working requirements, providing sufficient space for:
✔ PCB soldering and rework
✔ Electronic component inspection
✔ Mechanical parts inspection
✔ Precision assembly tasks
The high-rise structure allows users to place larger objects under the lens while maintaining a comfortable operating position.
1X-150X Continuous Zoom C-Mount Industrial Lens
The included C-Mount lens can be directly installed on industrial microscope cameras and is widely used in various precision repair and inspection applications.
Lens Specifications:
| Parameter | Specification |
|---|---|
| Zoom Magnification | 1X - 150X (Display Magnification) |
| Actual Optical Magnification | 0.15X - 2X |
| Zoom Ratio | 1:15 |
| Working Distance | 50mm - 1000mm (1.97 - 39.37 inches) |
| Installation Diameter | 42mm / 50mm |
| Maximum Field of View | 4.2mm × 2.4mm |
| Minimum Field of View | 130mm × 70mm |
| Lens Size | Ø30mm × 99mm (Ø1.18 × 3.90 inches) |
| Lens Weight | 195g (0.43 lbs) |
| Mount Type | C-Mount |
Long Working Distance Design
With an adjustable working distance of 50mm-1000mm (1.97-39.37 inches), the lens provides enough space for:
- Soldering iron operation
- Hot air rework
- Tweezers and repair tools
- Large PCB boards
The continuous zoom design allows users to quickly switch between wide-area observation and detailed component inspection.
XVH2003 1080P HDMI/VGA Industrial Microscope Camera
The microscope is equipped with the YIZHAN XVH2003 industrial camera, featuring a high-quality back-illuminated CMOS image sensor for clear and stable imaging.
Camera Features:
High-Definition 1080P Output
- Sensor Type: Back-illuminated CMOS image sensor
- Sensor Size: 1/2.8-inch
- Output Resolution: HDMI/VGA 1080P
- Frame Rate: 30 FPS
The camera directly outputs high-definition images to a monitor, eliminating the need for a computer and providing smooth real-time inspection.
Adjustable Image Settings
The XVH2003 camera supports multiple image adjustment functions:
✔ Manual / Auto Exposure
✔ One-touch Exposure Adjustment
✔ Exposure Compensation Adjustment
✔ Manual / Auto White Balance
✔ One-touch White Balance
✔ Red / Green / Blue Color Adjustment
These functions allow users to achieve accurate image quality under different lighting conditions.
Built-in Measurement & Display Functions
For easier inspection and analysis, the camera provides:
✔ 16-line drawing function
- Adjustable line color
- Adjustable line thickness
- Adjustable position
✔ Center Crosshair Display
- Enable / disable crosshair function
✔ Multi-language Support
- Chinese and English interface
✔ Parameter Memory Function
- Automatically saves settings after shutdown
Ideal Applications
The YIZHAN XVH2003 Digital Microscope is suitable for:
Electronics Repair
- PCB soldering inspection
- SMD component repair
- IC chip inspection
- Circuit board troubleshooting
Industrial Inspection
- Precision component inspection
- Manufacturing quality control
- Small mechanical part analysis
Education & Training
- Laboratory demonstrations
- Technical training
- Repair tutorials and documentation
Use overlay text to give your customers insight into your brand. Select image and text that relates to your style and story.
The required software has not been sent/installed.
Test with multiple software. Check if the camera appears in the computer's Device Manager.
Check if the adapter plug is damaged (replace it for testing).
Red means the camera cannot be started or has stopped working (firmware reflash may be required). Orange means normal operation.
Check if the camera has an SD card (max. 32GB, read/write speed > 10MB/s) or USB drive inserted.
The monitor's resolution or refresh rate is not supported. Change or adjust the resolution to 1920*1080P.
First, restore the camera to factory settings. If the issue persists, adjust the color parameters.
Check if the battery (CR2025) is installed. The remote control only works in HDMI output mode.
Re-plug the USB drive multiple times and ensure it is fully inserted into the port.
UVC protocol (Microsoft's universal video class protocol).
