Auto Focus Industrial Microscope Camera XZ5001
Download English Manual (PDF)
Click the link above to get the full user guide for this product.

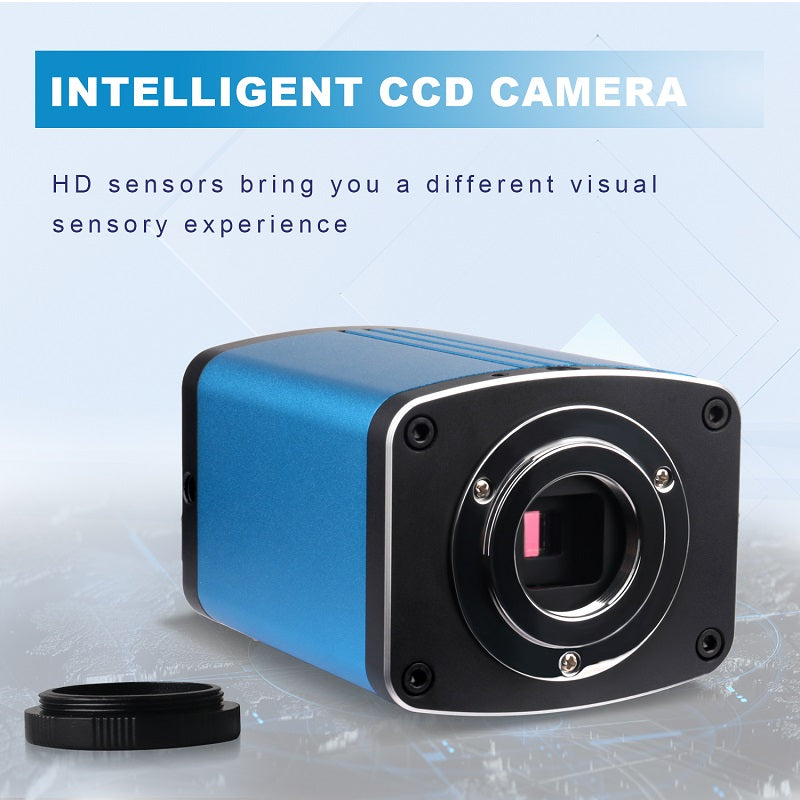

XZ5001 Auto Zoom HDMI Industrial Microscope Camera
The YIZHAN XZ5001 Auto Zoom Industrial Microscope Camera is a professional imaging solution designed for precision inspection, measurement, and quality control applications. Featuring an automatic zoom control system, Sony IMX307 high-sensitivity CMOS sensor, and Full HD 1080P@60FPS imaging, it provides fast, accurate, and convenient observation without manual lens adjustment.
The auto zoom function allows users to quickly adjust magnification according to different inspection requirements, improving efficiency in applications such as PCB inspection, electronics repair, automotive parts inspection, industrial quality control, and laboratory analysis.

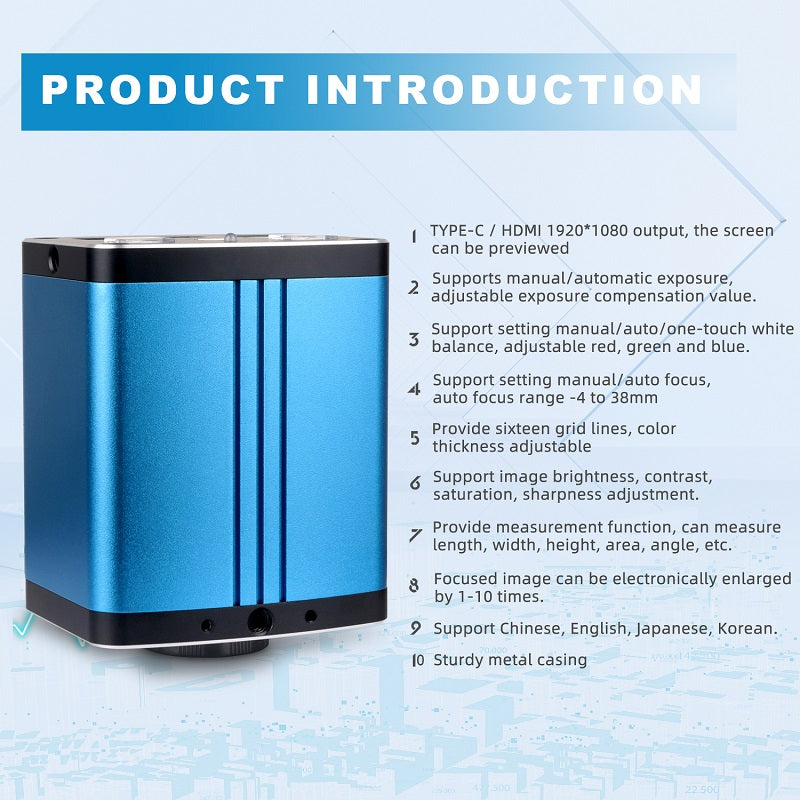

Key Features
Automatic Zoom Control for Efficient Inspection
Unlike traditional microscope cameras that require manual lens adjustment, the XZ5001 features an automatic zoom system for fast and precise magnification adjustment.
The auto zoom function allows users to:
- Quickly switch between different magnification levels
- Adjust the viewing area according to sample size
- Improve inspection efficiency
- Reduce manual operation during repeated measurements
It is especially suitable for industrial inspection environments where fast and consistent imaging is required.
High-Sensitivity Sony IMX307 CMOS Sensor
Equipped with the Sony IMX307 CMOS sensor, the camera delivers:
- Full HD 1920 × 1080 resolution
- Excellent image clarity
- High sensitivity under different lighting conditions
- Accurate color reproduction
It captures fine details of components, surfaces, and micro defects for professional inspection.

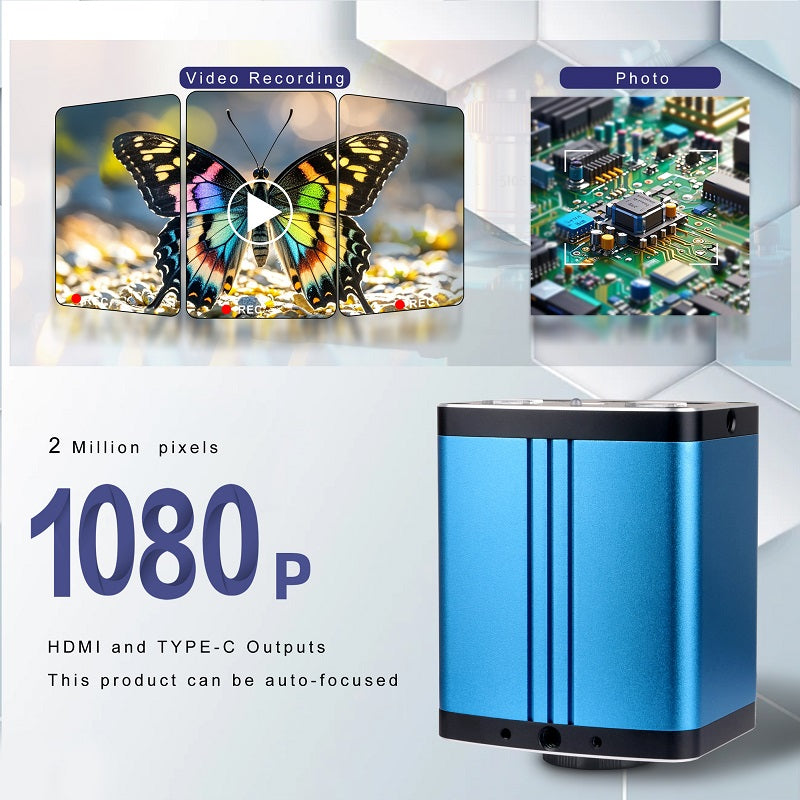

HDMI 1080P@60FPS Real-Time Imaging
The XZ5001 supports direct HDMI connection to an HD monitor, providing:
- 1080P high-definition display
- 60FPS smooth live video
- Real-time observation without computer connection
Users can inspect samples directly on a large screen, making it ideal for production lines, laboratories, and repair stations.

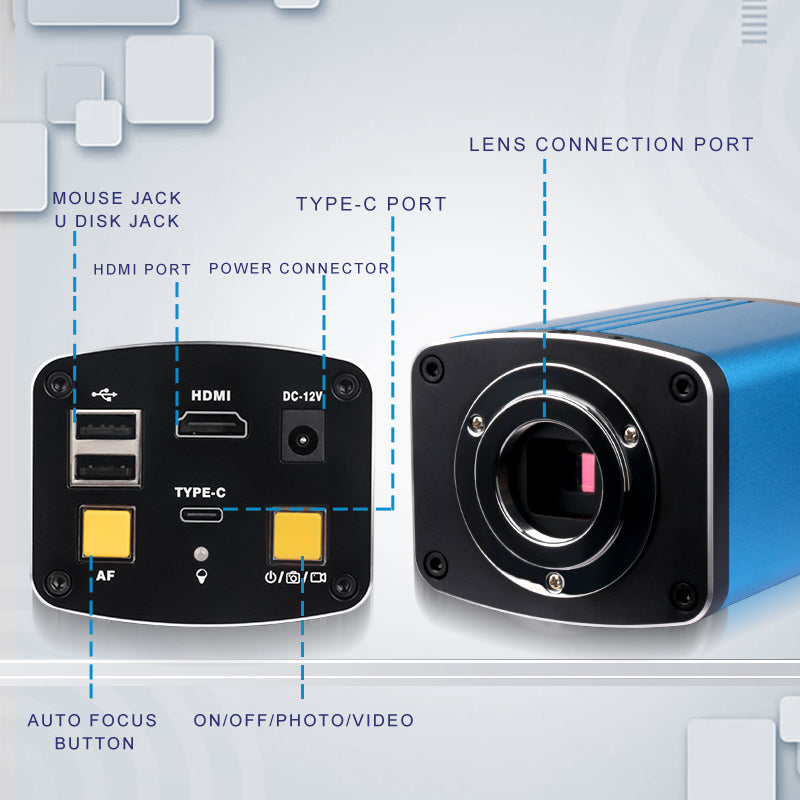

HDMI + USB Dual Output
The camera supports multiple output methods:
HDMI Output
Connect directly to:
- HDMI monitor
- Industrial display
- Large-screen inspection system
USB Output
Connect to a computer for:
- Image analysis
- Measurement
- Data recording
- Software operation
HDMI and USB can provide simultaneous high-definition video output for flexible workflow.
Standalone Operation with Image Capture and Recording
The built-in Youngwin OS system allows users to operate the camera without a PC.
Through the USB ports, users can connect:
- Mouse for operation control
- USB flash drive for image and video storage
Functions include:
- Image capture
- Video recording
- Camera parameter adjustment
- File storage
Professional Measurement Function
The XZ5001 supports measurement functions through compatible PC software.
Users can measure:
- Length
- Diameter
- Distance
- Defect size
- Surface dimensions
This makes it suitable for applications requiring accurate inspection records.
Technical Specifications
| Item | Specification |
|---|---|
| Camera Model | XZ5001 |
| Zoom Function | Automatic Zoom Control |
| Sensor | Sony IMX307 CMOS |
| Sensor Size | 1/2.8 inch |
| Pixel Size | 2.9 × 2.9 μm |
| Output Resolution | 1920 × 1080 |
| Frame Rate | HDMI + USB: 1080P@60FPS |
| Video Recording | 1920 × 1080@30FPS |
| Storage | USB Flash Drive / Computer |
| Exposure Time | 0-999ms |
| Exposure Mode | Auto / Manual |
| White Balance | Auto / Manual / ROI Mode |
| Image Adjustment | Contrast, Saturation, Gamma, Sharpness, Noise Reduction |
| System Software | Youngwin OS |
| PC Software | S-EYE 2.0 |
| Working Temperature | 0-60℃ |
| Storage Temperature | -20-85℃ |
Why Choose YIZHAN XZ5001 Auto Zoom Microscope Camera?
✔ Automatic zoom adjustment for faster inspection
✔ Sony IMX307 high-sensitivity CMOS sensor
✔ 1080P@60FPS high-definition imaging
✔ HDMI direct display without PC
✔ USB image capture and recording
✔ Measurement and analysis support
✔ Ideal for industrial inspection and quality control
The YIZHAN XZ5001 Auto Zoom Industrial Microscope Camera combines automatic zoom technology, high-definition imaging, and professional measurement functions to provide an efficient solution for modern inspection applications.
Use overlay text to give your customers insight into your brand. Select image and text that relates to your style and story.
The required software has not been sent/installed.
Test with multiple software. Check if the camera appears in the computer's Device Manager.
Check if the adapter plug is damaged (replace it for testing).
Red means the camera cannot be started or has stopped working (firmware reflash may be required). Orange means normal operation.
Check if the camera has an SD card (max. 32GB, read/write speed > 10MB/s) or USB drive inserted.
The monitor's resolution or refresh rate is not supported. Change or adjust the resolution to 1920*1080P.
First, restore the camera to factory settings. If the issue persists, adjust the color parameters.
Check if the battery (CR2025) is installed. The remote control only works in HDMI output mode.
Re-plug the USB drive multiple times and ensure it is fully inserted into the port.
UVC protocol (Microsoft's universal video class protocol).
